From: Study of β1-transferrin and β2-transferrin using microprobe-capture in-emitter elution and high-resolution mass spectrometry

Figure 2

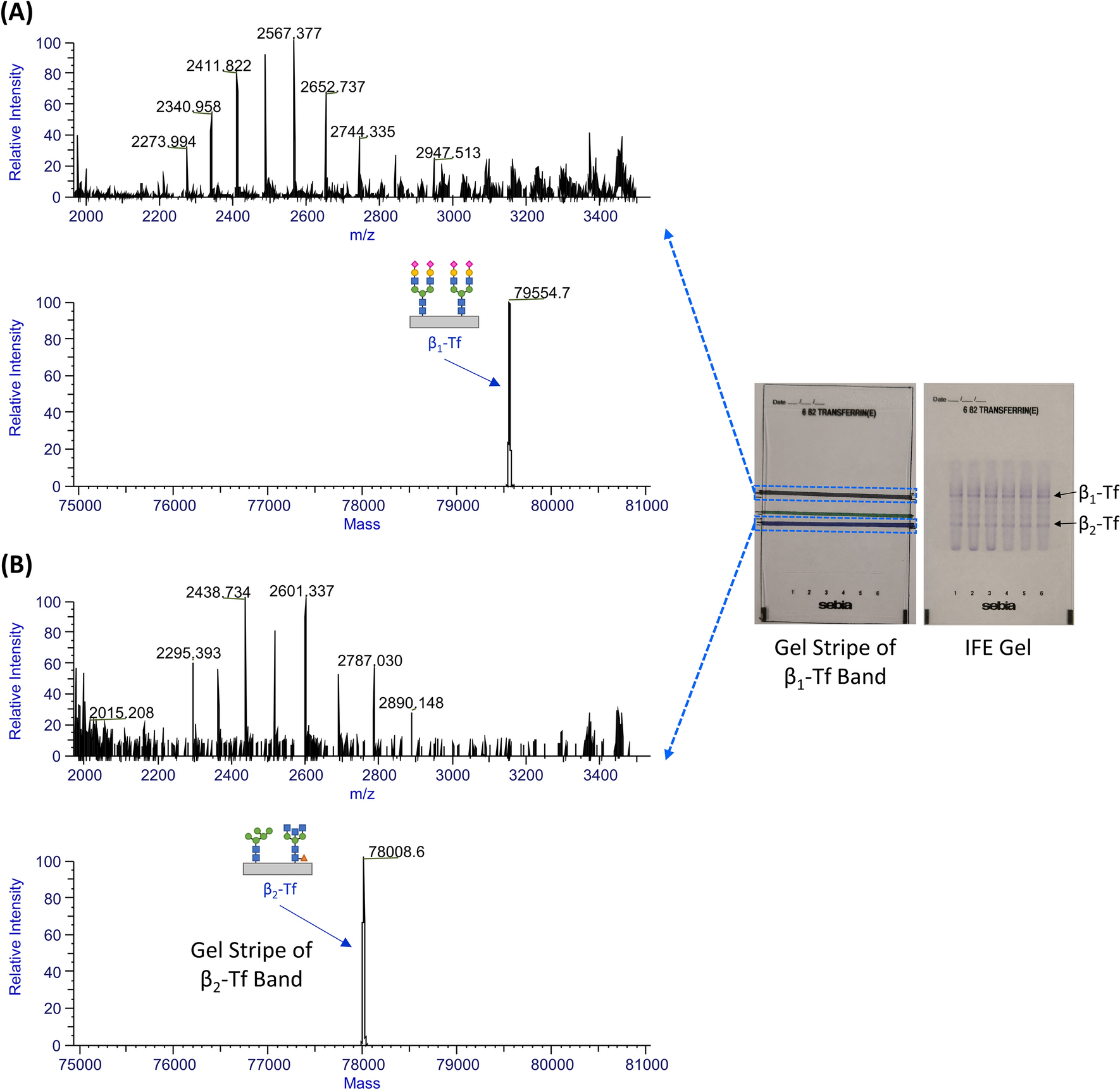

The MPIE-ESI-MS results of (A) the extract from the gel stripe of the β1-Tf band region and (B) the extract from the gel stripe of the β2-Tf band region: HR-MS raw mass spectra (left) and deconvoluted mass spectra (right) of captured Tf molecules, showing β1-Tf in (A) and β2-Tf in (B). The image of an agarose gel after gel electrophoresis is posted to the right of the mass spectra, which was placed on the paper template marked with the β1-Tf and β2-Tf band regions. The image of a reference agarose gel after immunofixation is posted further on the right, indicating the β1-Tf and β2-Tf band regions designated according to the manufacturer’s protocol.
