Figure 1
From: Pressure driven polymorphic transitions in nanocrystalline Lu2O3, Tm2O3 and Eu2O3

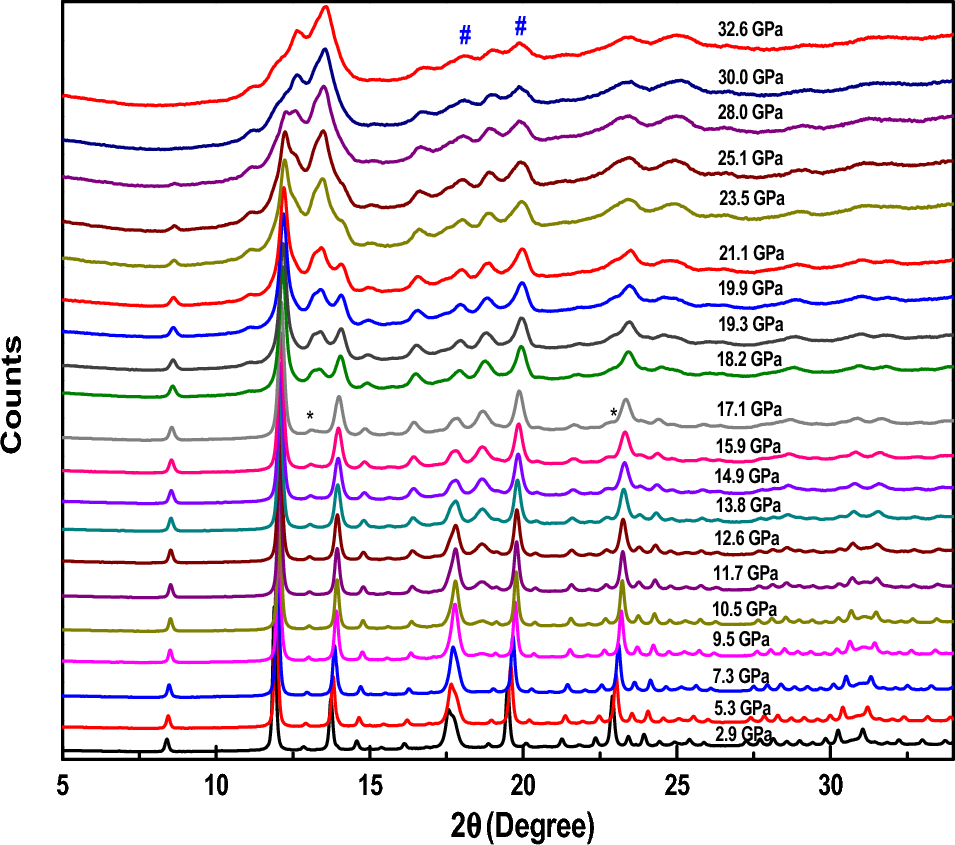

XRD patterns of Lu2O3 with increasing pressures. Each diffraction data is marked with the corresponding pressure and the peaks corresponding to the gasket material have been marked with #.
