Figure 7
From: Convolutional neural networks for mode on-demand high finesse optical resonator design

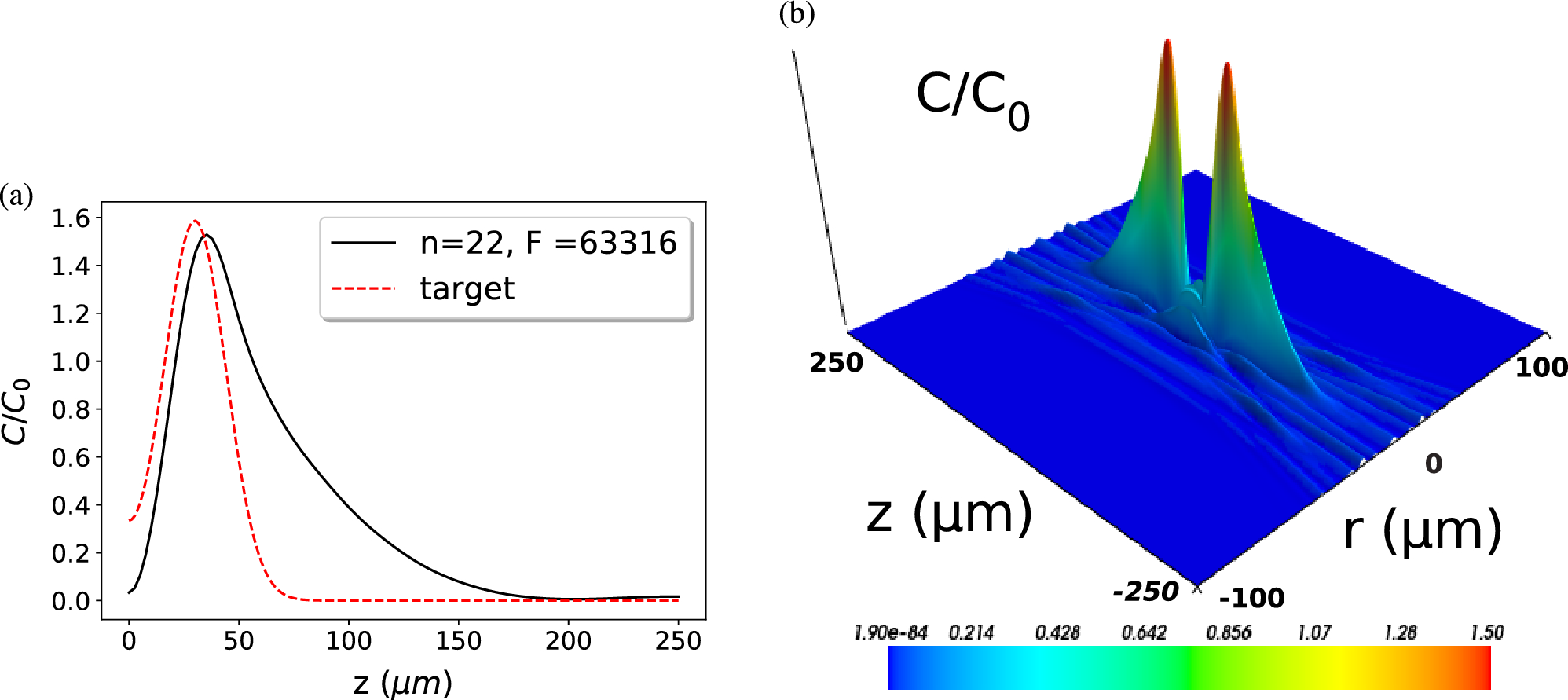

Demonstration of CNN inverse design for a cavity mode with two maxima on the z axis. (a) The axial cross section of the target mode (red dashed curve) and the numerically verified predicted mode (black solid). (b) The predicted mode in cylindrical coordinates confirming the two-peak structure.
