Figure 12
From: An AI-powered navigation framework to achieve an automated acquisition of cardiac ultrasound images

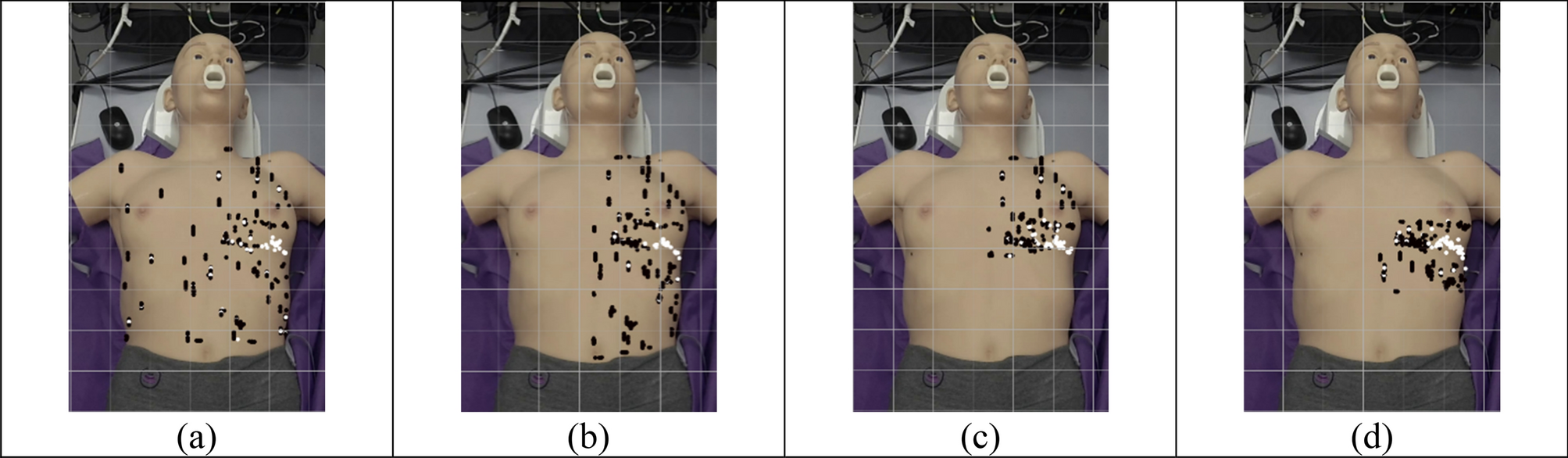

End points for search domain traversals for (a) whole torso, (b) left side, (c) left upper, (d) left middle. White points indicate positions for A2Ch and A4Ch imaging, black points otherwise.
