Figure 10

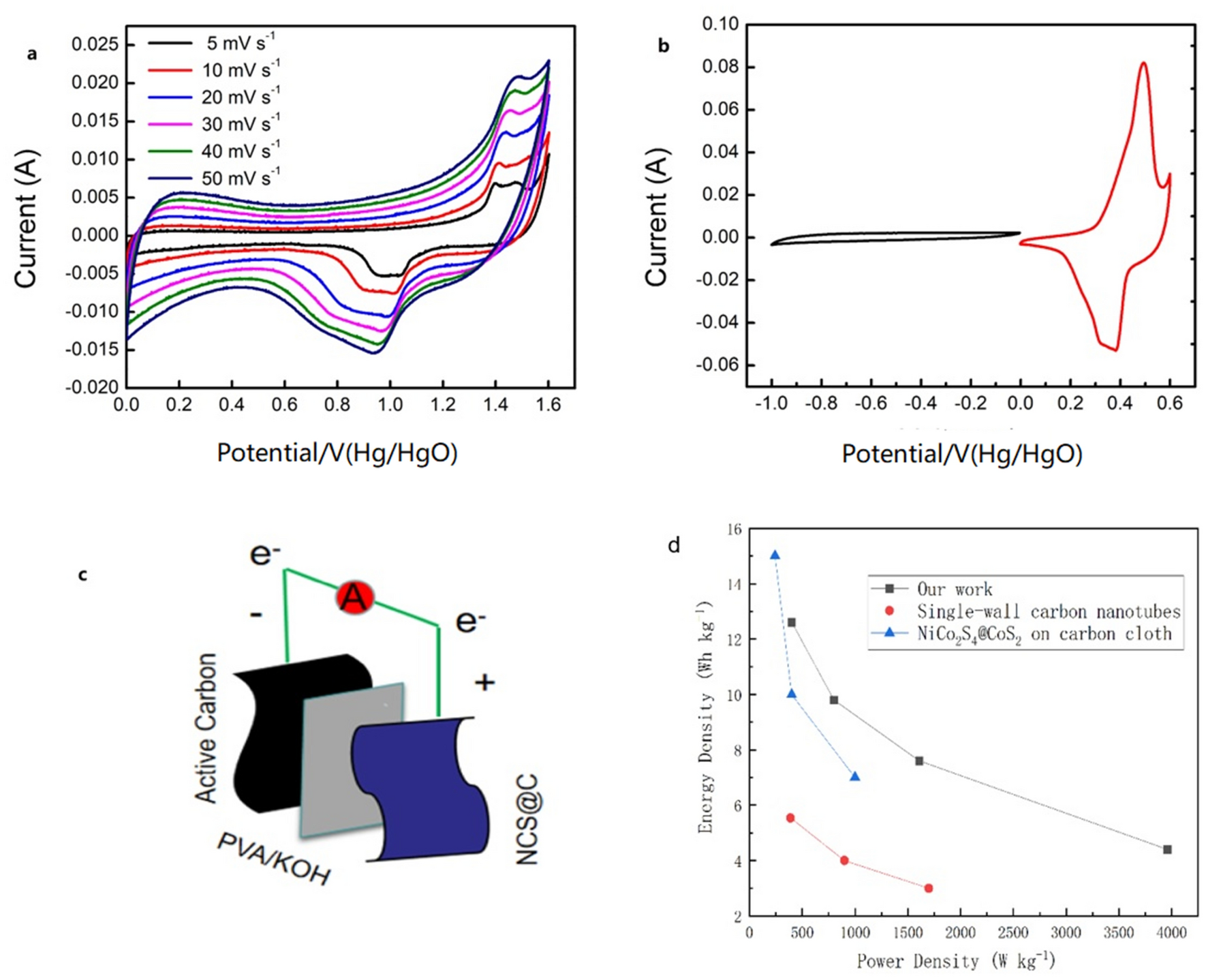

(a) CV curves of the device at different scan rates, (b) CV curves of the AC and NCS@C electrodes in the three-electrode system at a scan rate of 5 mV s−1, (c) schematic diagram of the ASC device, and (d) Ragone plot of the energy and power densities of the ASC device.
