Figure 2

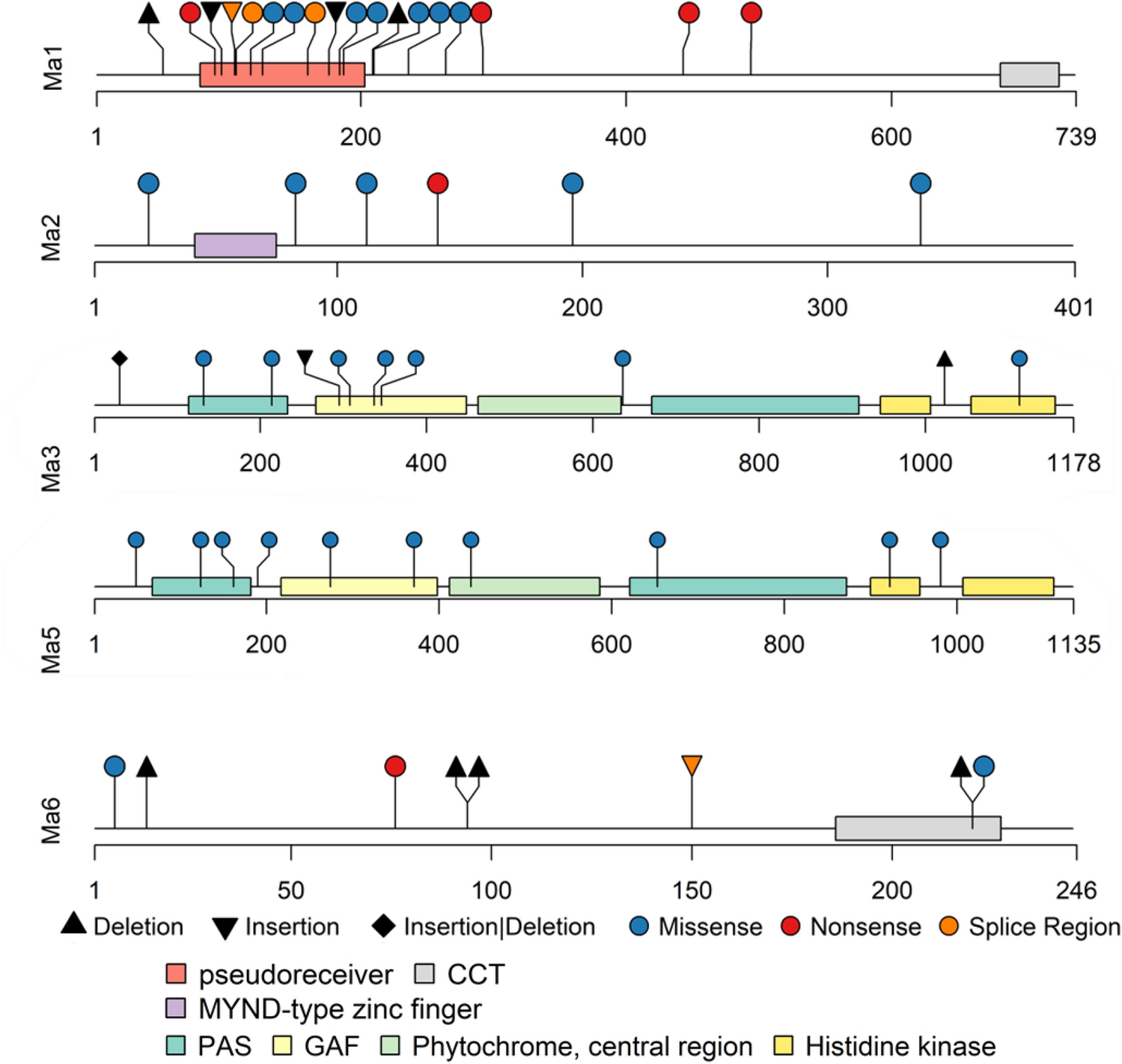

Sorghum bicolor lollipop plot schematics for Maturity genes exons (Ma1, Ma2, Ma3, Ma5, Ma6) with predicted protein motifs27 labeled below. Select deleterious genomic variants are flagged at known locations along the length of the peptide (scale below each plot)28. Triangles represent insertions (point down) and deletions (point up), insertion or deletion a diamond, circles indicate a point mutation and color corresponds to the predicted peptide changes and effect on protein (blue missense, red nonsense, orange located in splice region).
