Figure 4
From: Multi-directional neutron dark-field imaging with single absorption grating

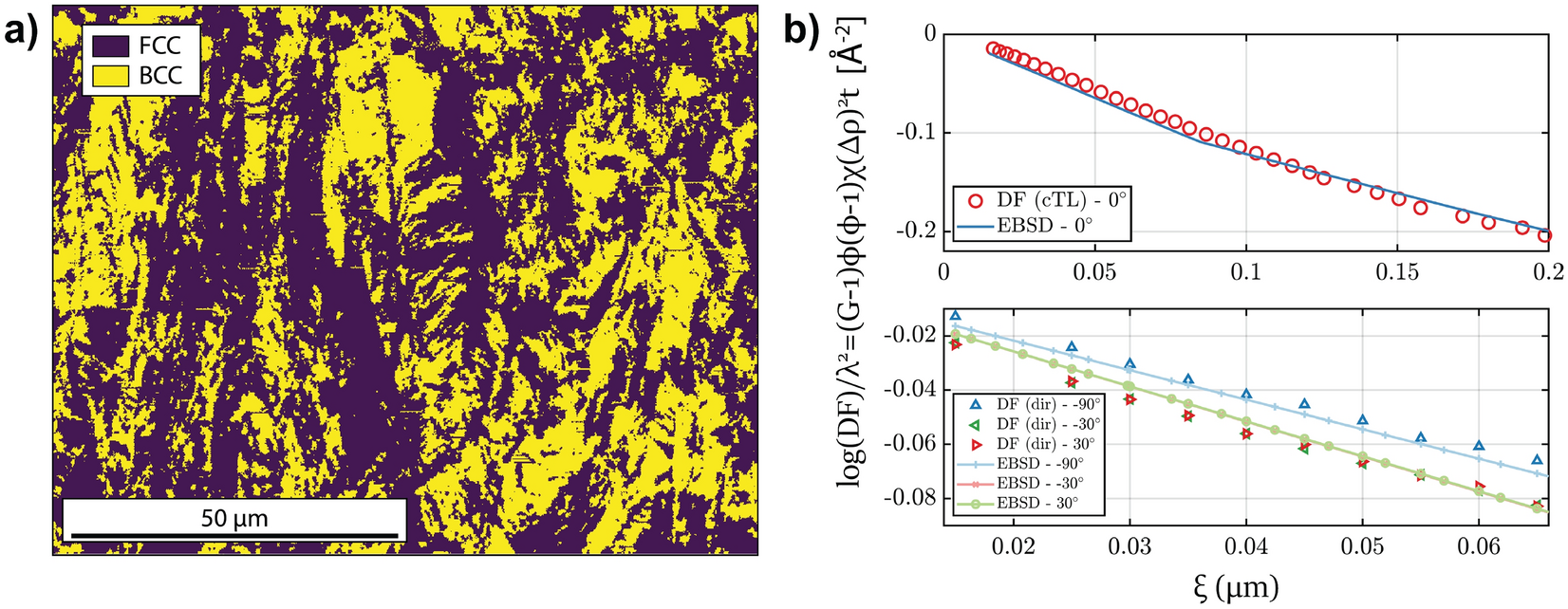

(a) EBSD map segmentation of austenitic (FCC) and martensitic (BCC) phases in the deformed dogbone sample. (b) Top: Comparison between experimental DF using conventional Talbot–Lau (cTL) grating interferometry (data from13) and a curve calculated from the EBSD map projected to the horizontal scattering direction. Bottom: Comparison between directional correlation functions extracted from the multi-directional DF imaging experiment and corresponding curves derived from EBSD measurements.
