From: Umbilical cord mesenchymal stem cells relieve osteoarthritis in rats through immunoregulation and inhibition of chondrocyte apoptosis

Figure 1

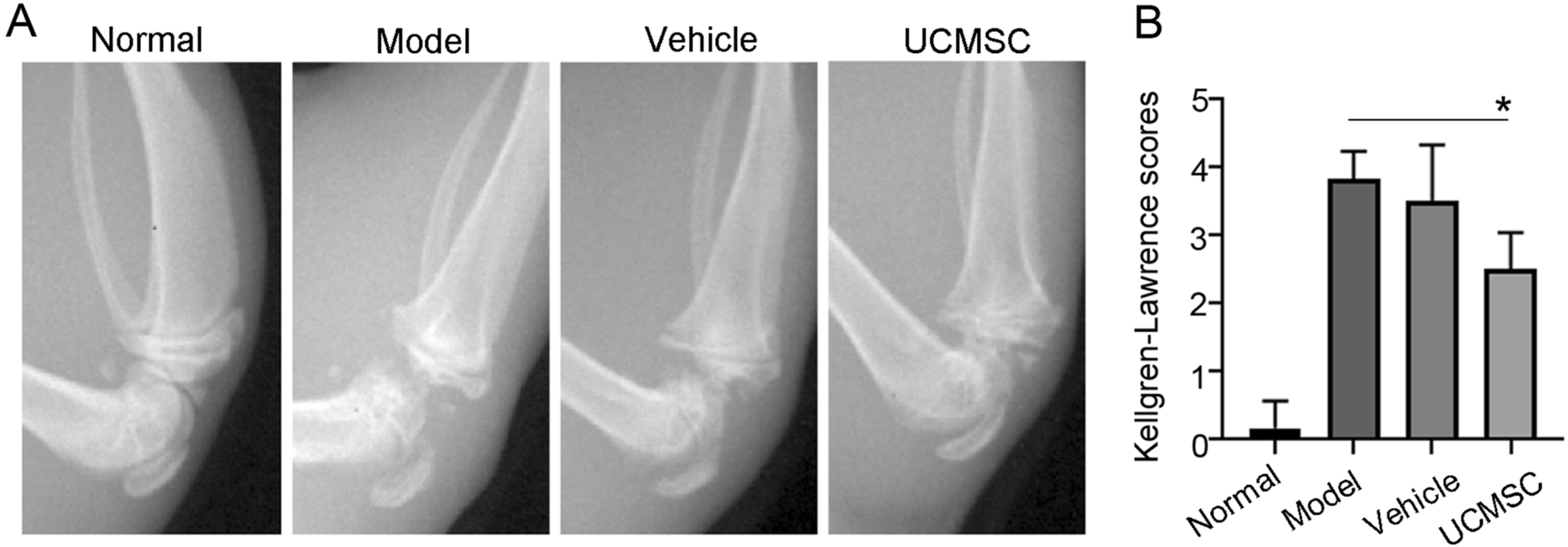

UCMSCs transplantation improved the knee joint structure of rats with OA. One week after the third UCMSC transplantation, X-rays were used to examine the structure of the rats’ knee joints. The OA model group had irregular articular surfaces, deformities, cartilage defects, tangential fissures, and obvious osteophytes. The articular surface of the UCMSC group was relatively flat. (A) Joint X-ray imaging. (B) Kellgren Lawrence score of joint X-ray imaging. Normal, normal group; Model, OA model group; Vehicle, OA model with saline injection; UCMSC, OA model with UCMSC transplantation, n = 6. *P < 0.05 analyzed by unpaired two-tailed t-test after normality and equal variance test using Shapiro–Wilk test and ANOVA plus Brown-Forsythe test in the GraphPad software.
