Figure 10
From: A model-driven approach for fast modeling of three-dimensional laser point cloud in large substation

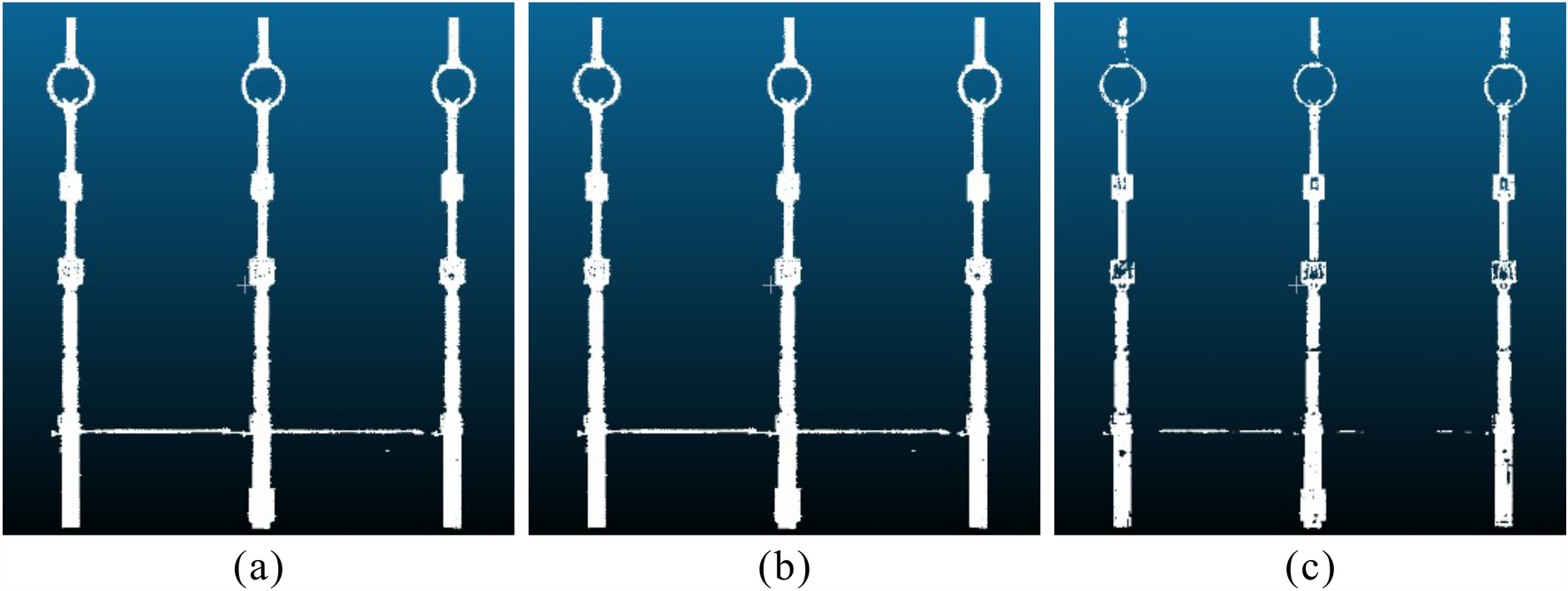

Segmentation results of isolation switch point clouds. Extracting point clouds of isolation by different methods. (a) and (b) present the segmentation results of VCHC, where the threshold distance used by VCHC in (a) is 0.2 m and the threshold distance used by VCHC in (b) is 1 m. (c) The denoising result of SOR, where the number of neighborhoods is 30 and the multiple of standard deviation is 1.
