From: Osteoclast differentiation and dynamic mRNA expression during mice embryonic palatal bone development

Figure 4

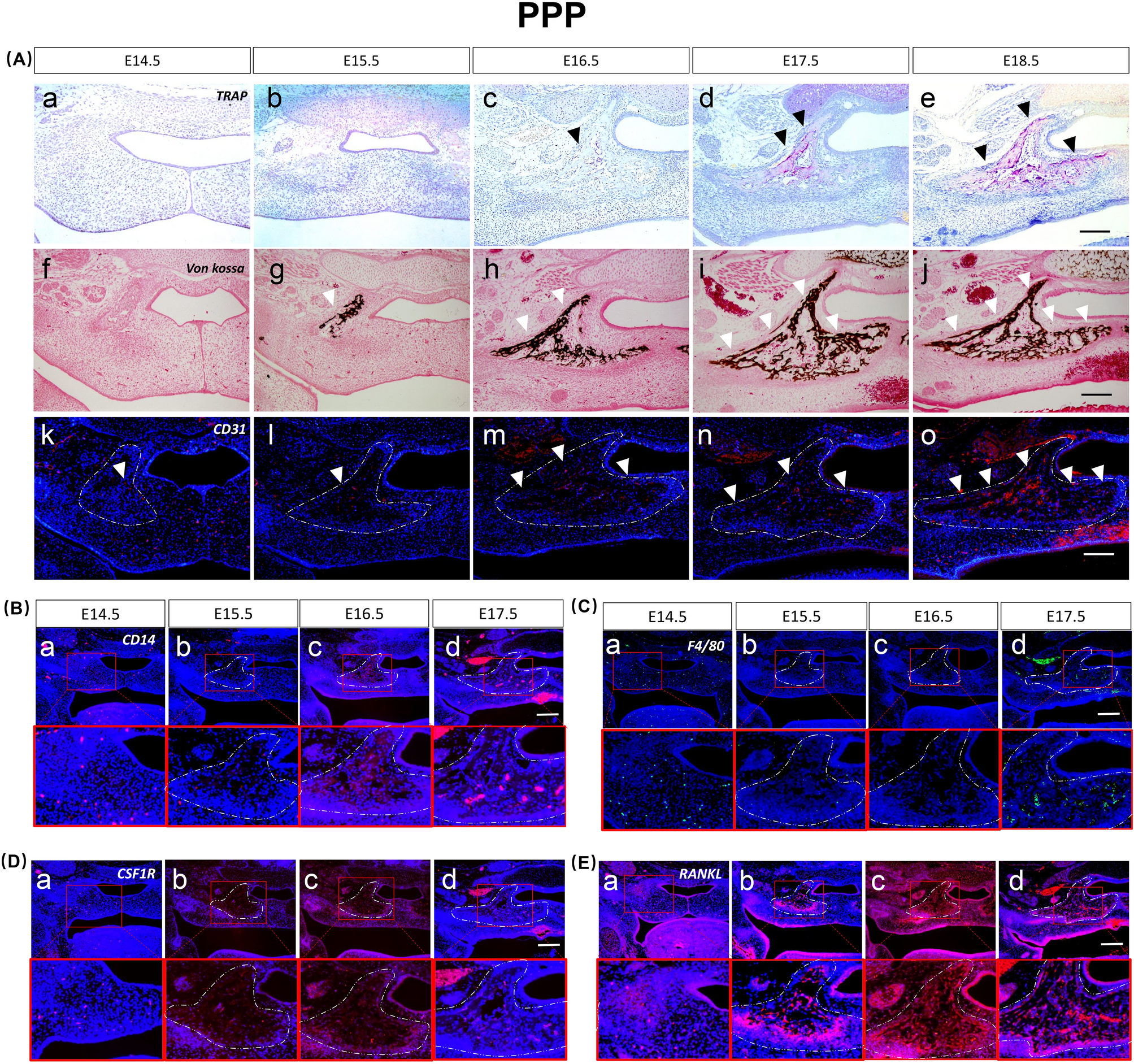

Osteoclast differentiation process of the palatal bone (PPP). (A) TRAP staining from E14.5 to E18.5 “a–e”, von Kossa staining from E14.5 to E18.5 “f–j”. Immunofluorescence staining expression patterns of CD31 from E14.5 to E18.5 “k–o”. (B–E) Immunofluorescence staining expression patterns of CD14, F4/80, CSF1R and RANKL during palatal osteoclastogenesis from E14.5 to E17.5. Black triangles represent TRAP-positive regions, and white triangles represent mineralizing and CD31-positive regions. Scale bar 500 µm.
