Figure 4
From: Volcanic glass from the 1.8 ka Taupō eruption (New Zealand) detected in Antarctic ice at ~ 230 CE

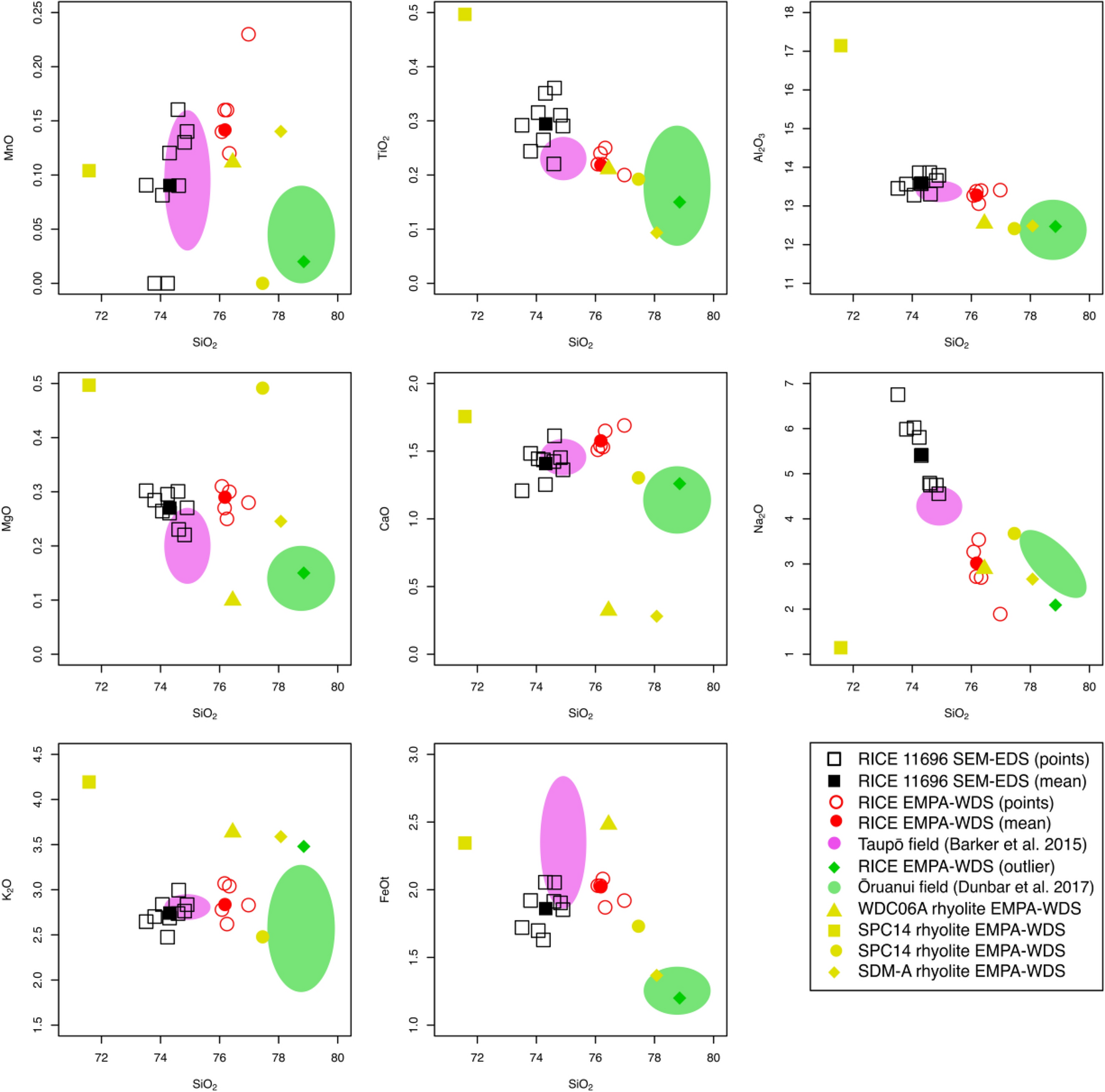

Geochemical compositions of cryptotephra particles analysed from the RICE (black squares and red circles), WDC06A (yellow triangles), SPC14 (yellow squares and circles), and SDM-A (yellow diamonds) ice cores compared to compositional fields for the 232 CE Taupō- (pink ovals: Barker et al.41) and ~25.5 ka Ōruanui-derived glass (green ovals: Dunbar et al.13). Individual measurements (black open squares) and mean value (black filled squares) from unpolished SEM–EDS of three glass shards identified in RICE ice core sample 11696, distinguished from the individual (red open circles and green filled diamonds) and mean (red filled circles) geochemical measurements obtained from polished EMPA-WDS of six glass shards identified in RICE ice core samples 11696 and 11697.
