Figure 10
From: Submarine optical fiber communication provides an unrealized deep-sea observation network

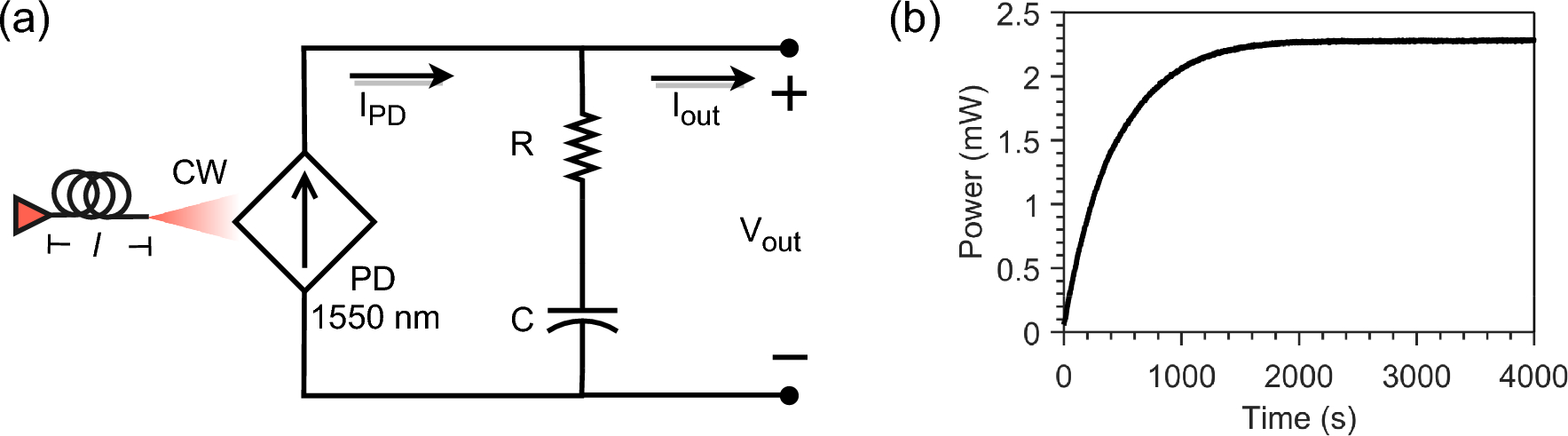

Power transmission over the MCF. (a) Equivalent charging circuit of the PWoF unit. (b) The supercapacitor power charging curve recorded during the power transmission.
