Figure 5 | Scientific Reports

Figure 5

From: Real-time hybrid angular-interrogation surface plasmon resonance sensor in the near-infrared region for wide dynamic range refractive index sensing

Figure 5

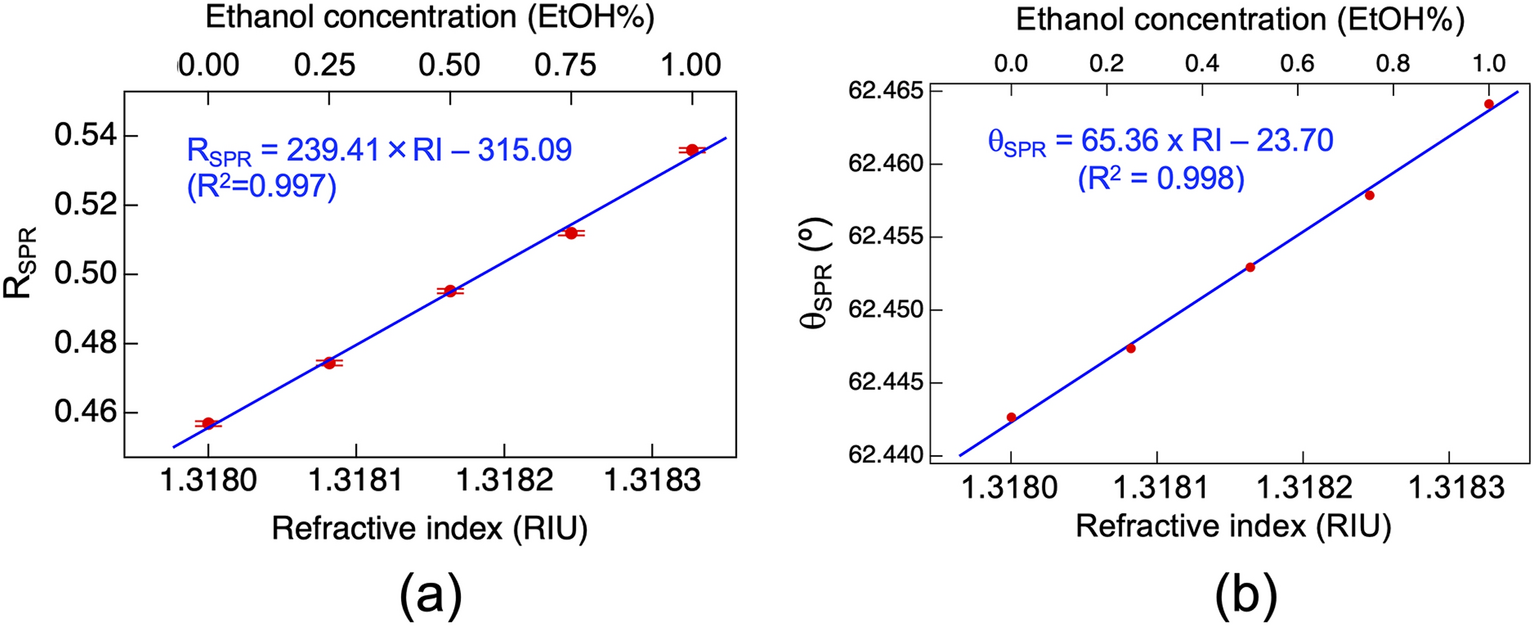

Experimental results of high-resolution RI sensing. Sample concentration increased stepwise from 0.00 EtOH% to 1.00 EtOH%. (a) Relation between the sample RI, or ethanol concentration, and the angle-fixed SPR reflectance (RSPR). (b) Relation between the sample RI, or ethanol concentration, and the SPR reflectance angle (θSPR).
