From: Characterization of a GH10 extremely thermophilic xylanase from the metagenome of hot spring for prebiotic production

Figure 5

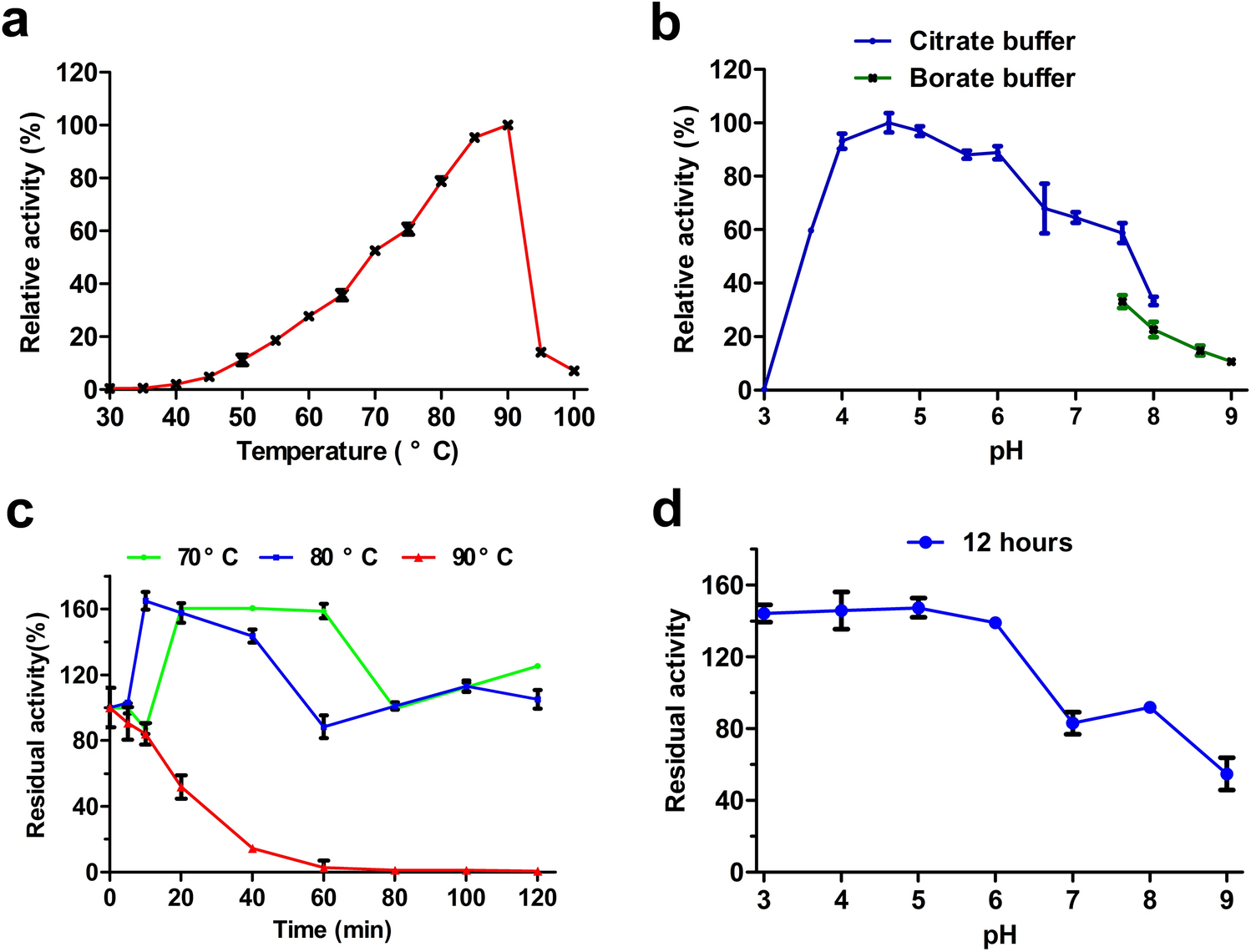

Effects of temperature and pH on the activity and stability of the recombinant XynGMQA. (a) Temperature effect on the activity of XynGMQA. (b) pH effect on the activity of XynGMQA. (c) The effect of temperature on stability at different temperatures (70, 80, and 90 °C) for 0, 20, 40, 60, 80, 100, and 120 min. (d) The effect of pH on stability. The primary activity was taken as 100%. Each value in the Figure represents the mean ± SD (n = 3). 100% = 3.4 ± 0.3 U/mg.
