Figure 1 | Scientific Reports

Figure 1

From: Viral maintenance and excretion dynamics of coronaviruses within an Egyptian rousette fruit bat maternal colony: considerations for spillover

Figure 1

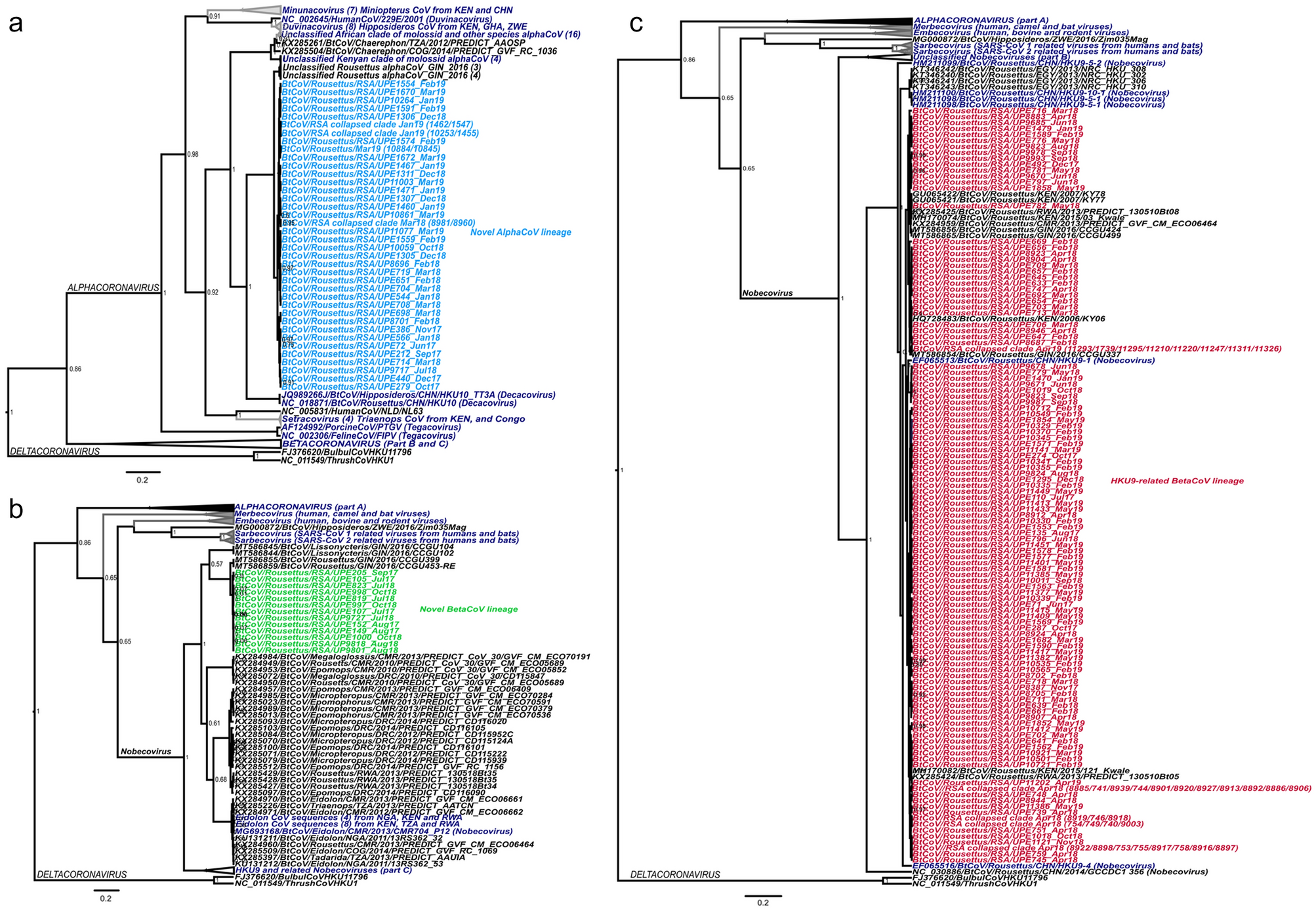

Bayesian phylogeny of the coronaviruses identified in the study. The phylogenetic tree was split into three parts for better visualization (with collapsed clades indicated). The Alphacoronavirus genus is shown in part A, the RouNobeCoV betacoronavirus identified in this study with related African sequences in part B, and the nobecoviruses related to the HKU9 species are shown in part C. Sequences in navy blue indicate reference species, specific subgenera or collapsed clades (to improve visualization). Sequences in light blue refer to the RouAlphaCoV, green to RouNobeCoV and red for the dominant HKU9-lineage sequences. Only posterior probabilities of greater than 0.5 are indicated. Three-letter country codes indicate sequence origins.
