Figure 3
From: Multi-ocean distribution of a brooding predator in the abyssal benthos

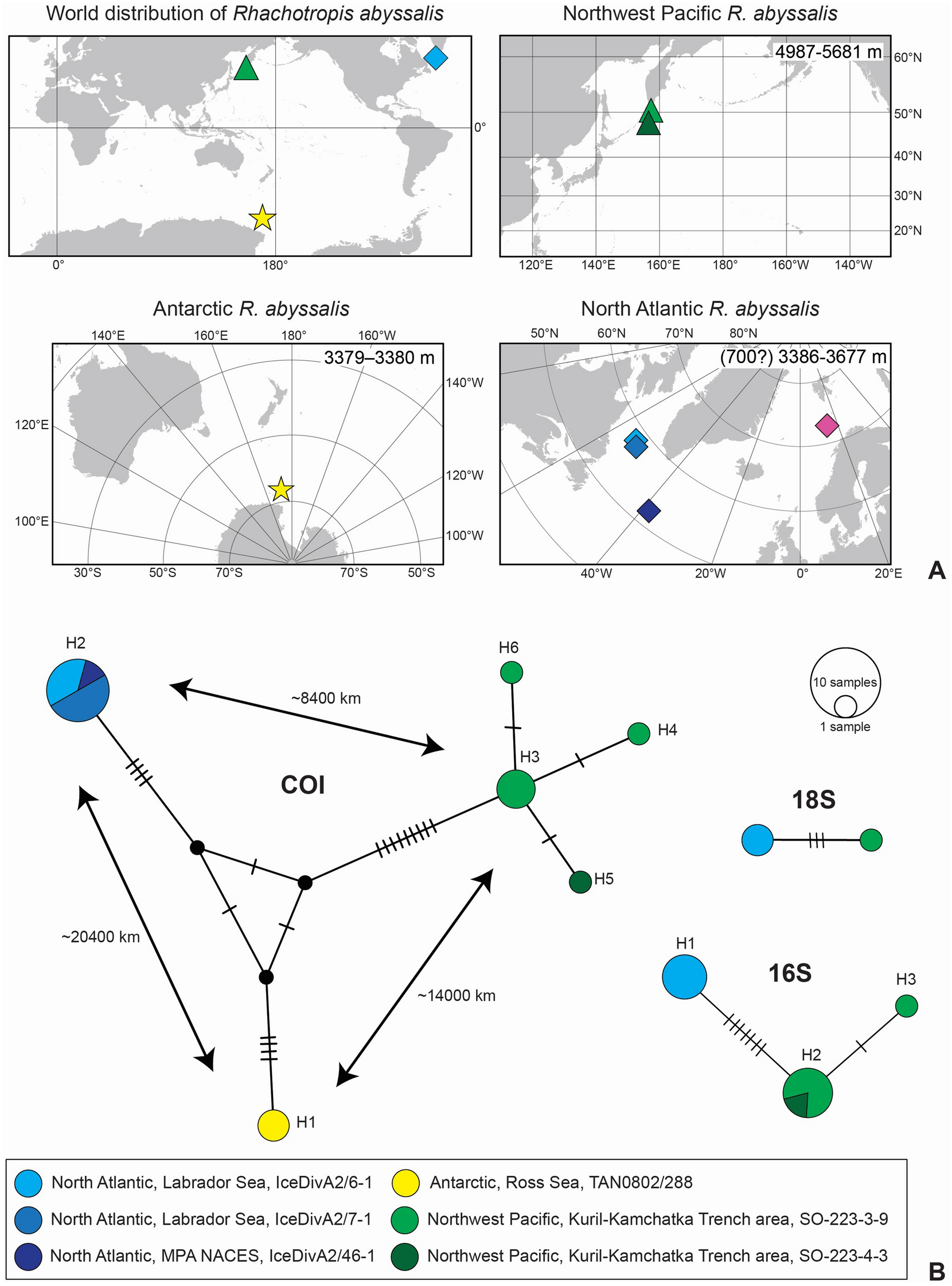

Geographic and molecular distance of the abyssal amphipod Rhachotropis abyssalis (A) Distribution of Rhachotropis abyssalis. Top left—world, top right—Northwest Pacific, bottom right—Antarctic, bottom left—North Atlantic. Pink diamond indicates the record from Ocean Biogeographic Information System (OBIS) for which neither voucher nor the sequence was available for the authors. (B) Median Joining networks of COI, 16S and 18S haplotypes of R. abyssalis with indication of their geographic origin. Code after area presents station code. The approximate geographic distances between the studied regions are given on the side of arrows.
