Figure 7
From: Study on pumping wear characteristics of concrete pipeline based on CFD-DEM coupling

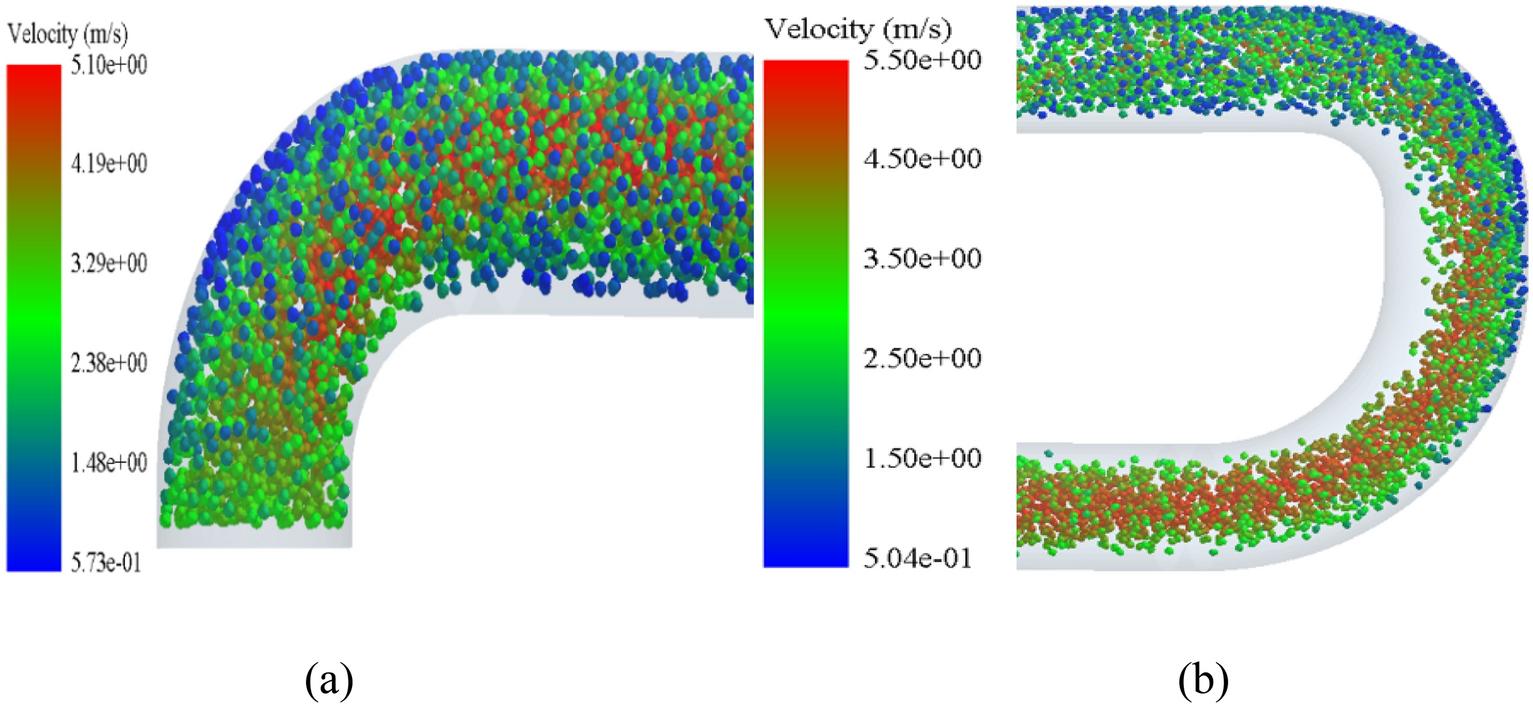

Nephogram of particle velocity at various parts of the conveying pipe: (a) Elbow 1 from above, and (b) Elbow 2–Elbow 3 from above.
