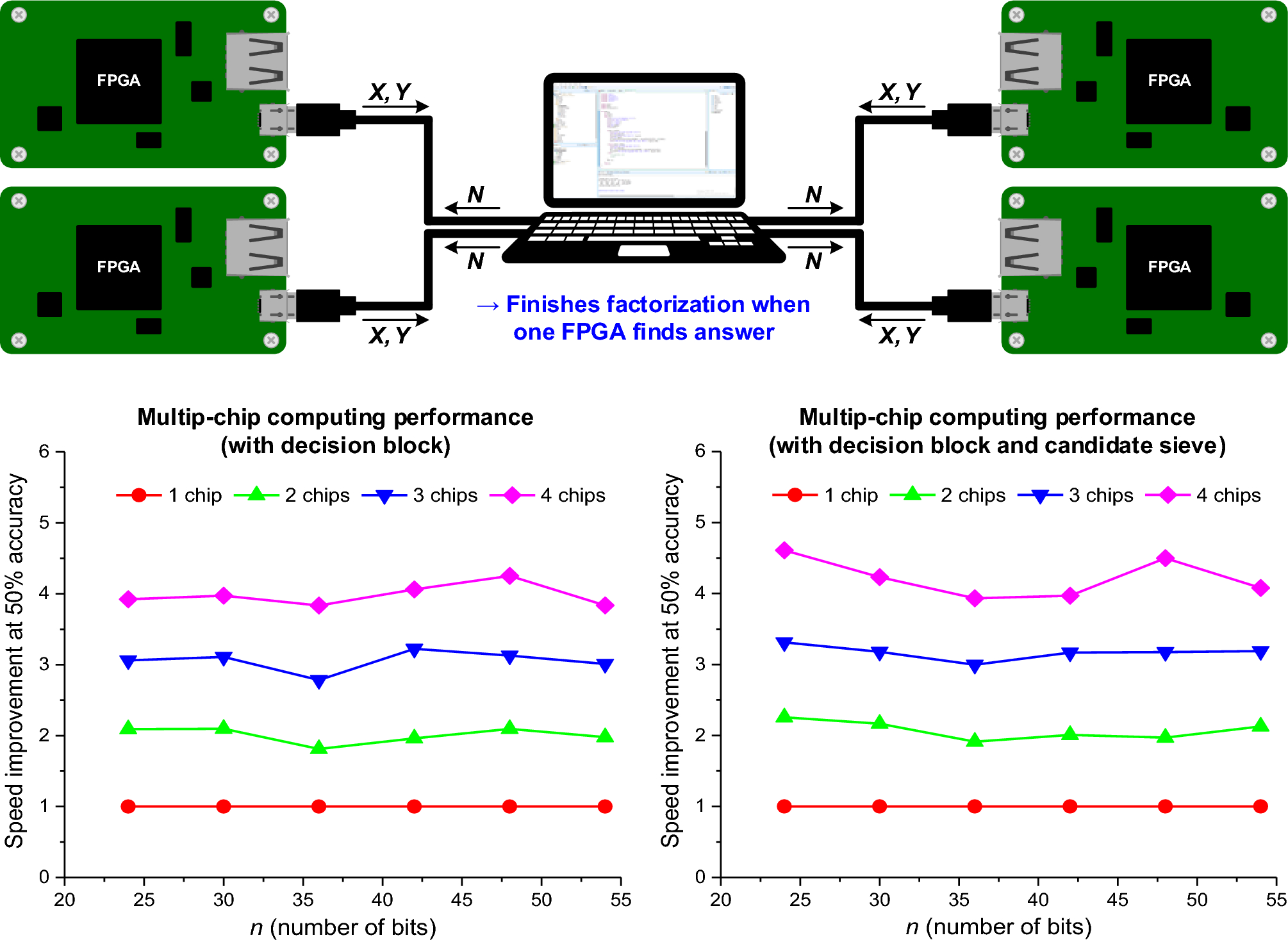

Figure 5

Performance of the machine for multi-chip computing. Measurement environment and measured results of multi-chip factorizations are shown. Four equivalent FPGA boards were connected to a computer and started operation together to factor the equivalent semiprime N. The factorization was finished immediately when one of the FPGA boards factorized N. The measurements were repeated 1,000 times, and factorization speed improvement (y-axis) represents the normalized number of samples of multi-chip architecture compared to that of the one-chip architecture. Compared to single-chip computing, multi-chip computing with 2, 3, and 4 machines achieved approximately 2.01 × , 3.05 × , and 3.98 × reductions in the number of sampling operations at 50% accuracy (500 solved experiments) with decision block. When the machine with a candidate sieve is employed, the average factorization performance is improved by 2.07 × , 3.17 × , and 4.22 × when using two, three, and four chips, respectively.
