Figure 8

From: Shear strength characteristics of basalt fiber-reinforced loess

Figure 8The alternative text for this image may have been generated using AI.

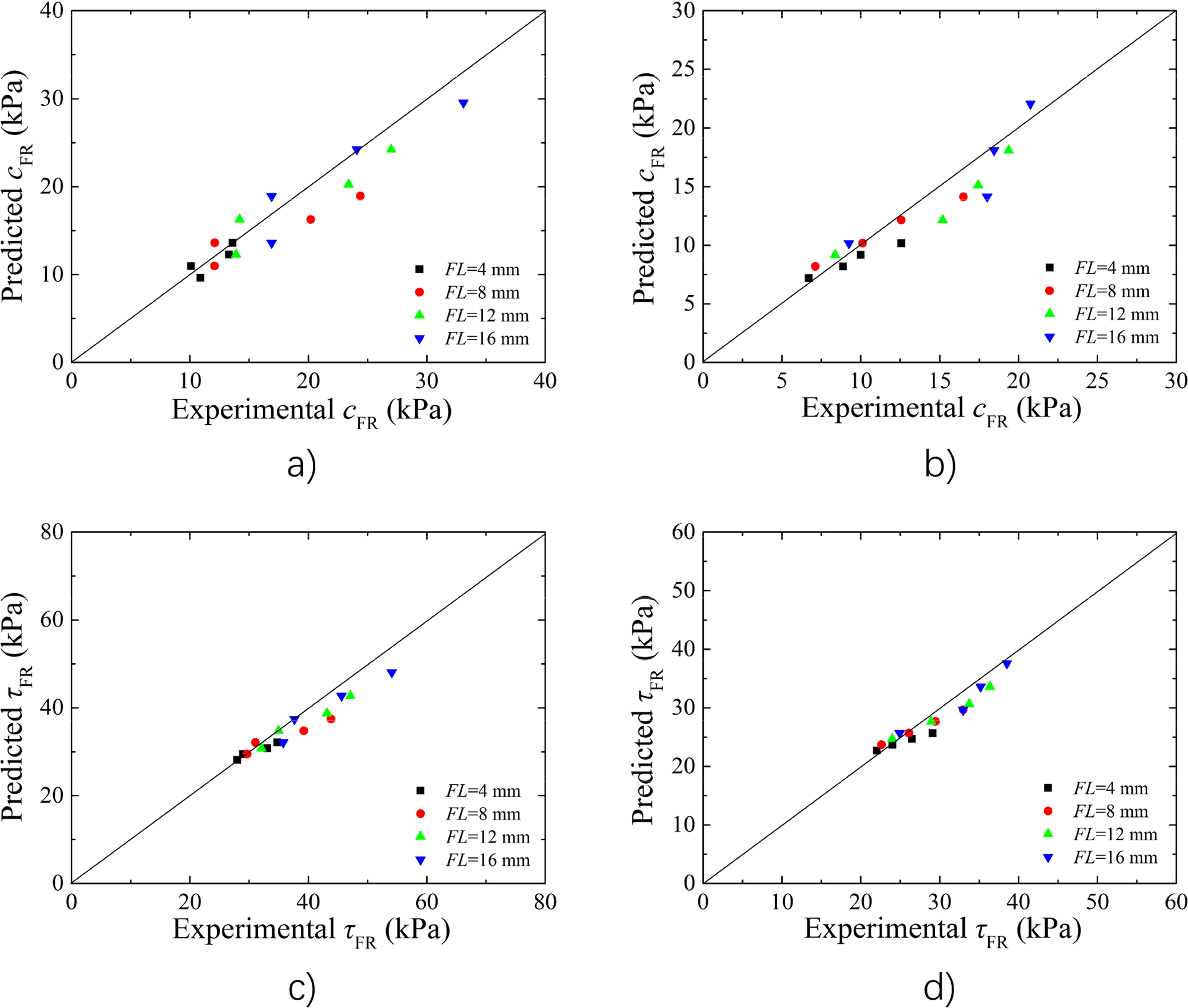

Comparison of the cohesion results and the shear strength results between measured and predicted (a) the cohesion results for w = 9%; (b) the cohesion results for w = 13%; (c) the shear strength results for w = 9%; (d) the shear strength results for w = 13%.
