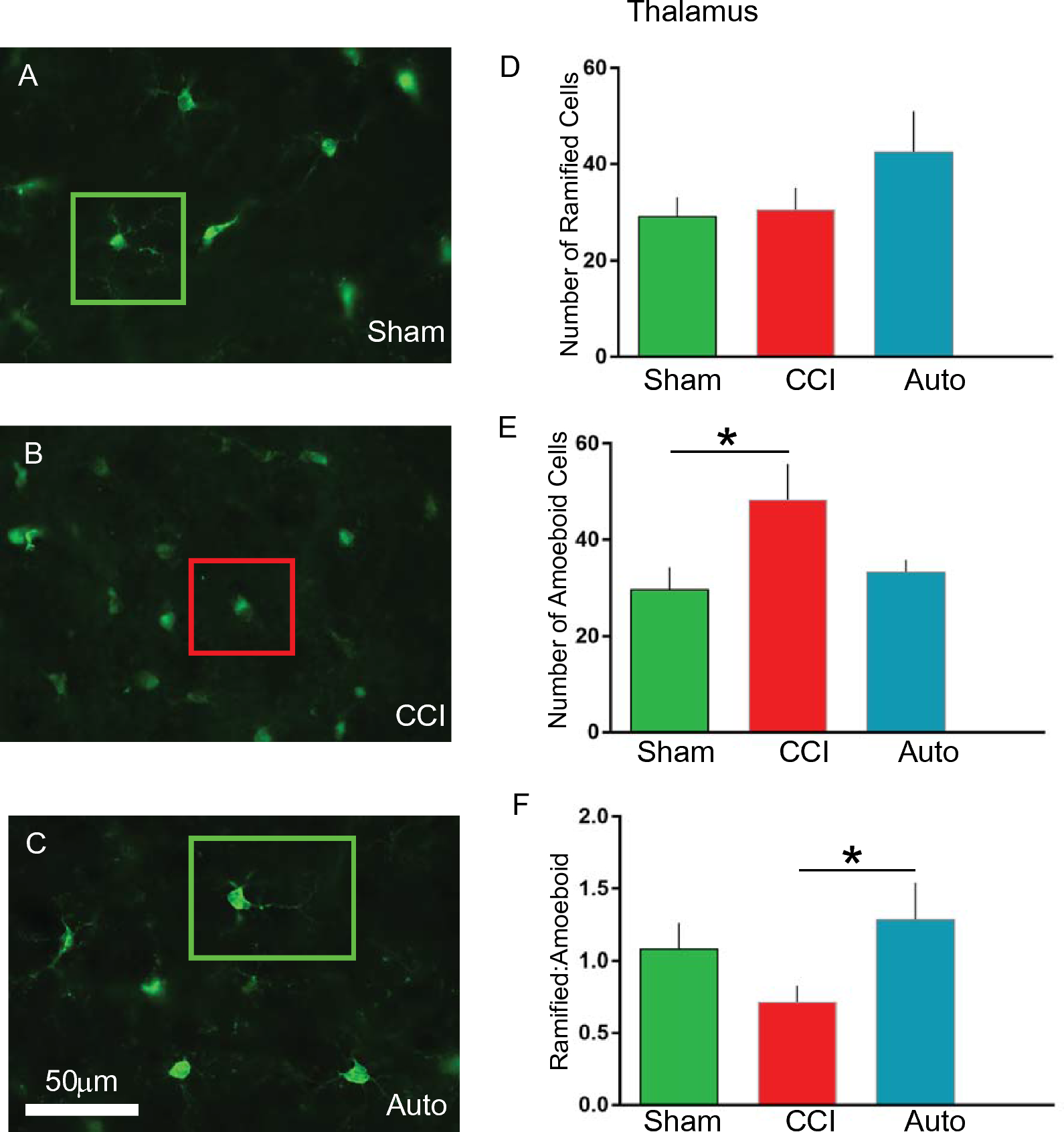

BMMNCs therapy increases the Ramified:Amoeboid in the thalamus after TBI. Representative photomicrographs of (A) Sham, (B) CCI and (C) AUTO. Green squares indicate ramified microglia and red squares indicate amoeboid microglia. (D) Graph comparing number of ramified cells between Sham, CCI and AUTO. (E) Graph comparing number of amoeboid cells between Sham, CCI and AUTO. There is a significant decrease in the number of amoeboid cells when comparing CCI vs Sham (P < 0.05). (F) Graph comparing Ramified:Amoeboid cells between Sham, CCI and AUTO. There is a significant increase in AUTO (Ramified:Amoeboid) when compared to CCI (P < 0.05).
