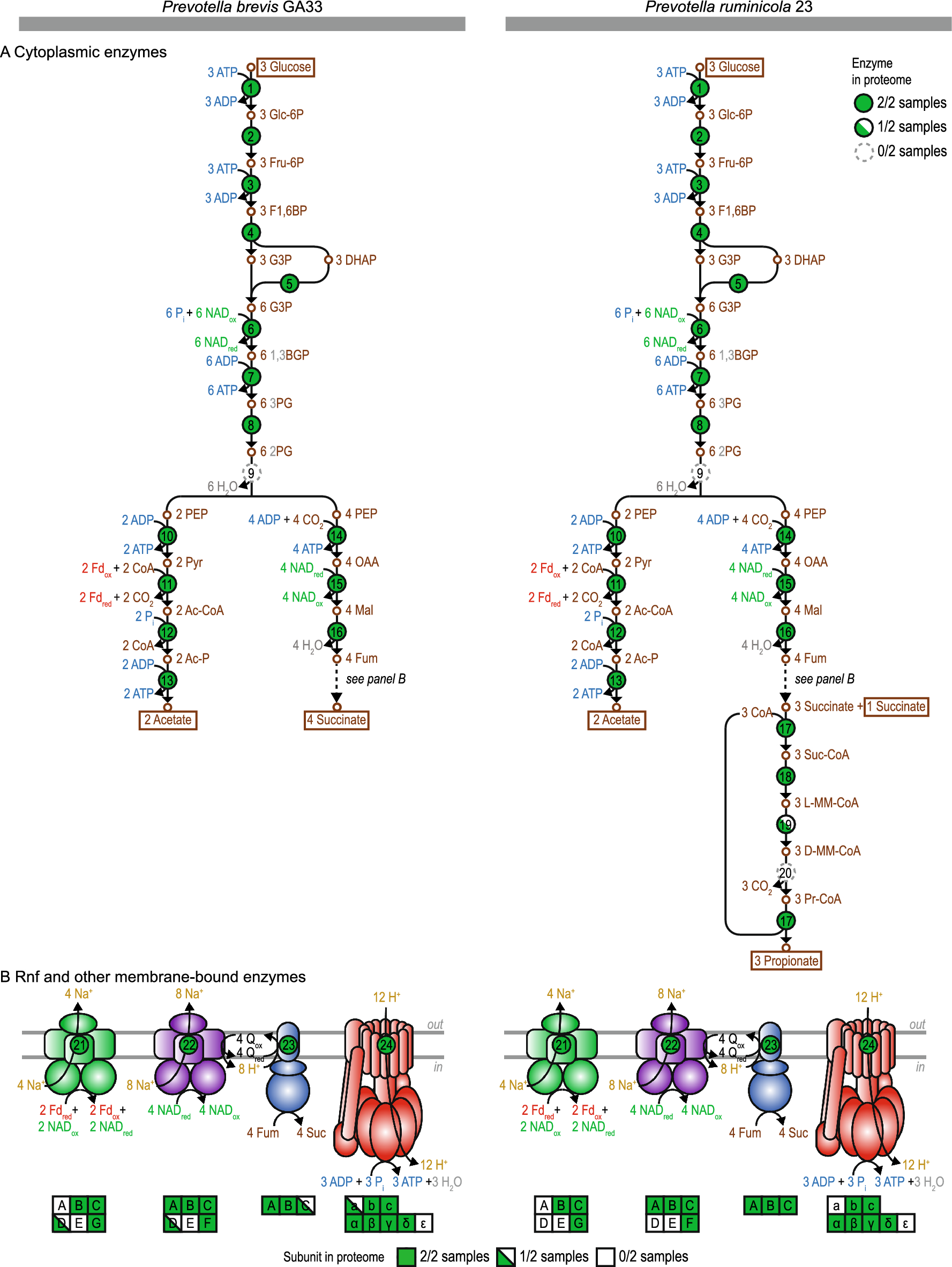

Figure 4
Prevotella have enzymes for forming propionate, succinate, and acetate in the proteome. (A) Cytoplasmic enzymes. (B) Rnf and other membrane-bound enzymes. Abbreviations: Glc-6P, glucose-6-phosphate; Fru-6P, fructose-6-phosphate; F1,6BP, fructose-1,6-bisphosphate; G3P, glyceraldehyde-3-phosphate; DHAP, dihydroxyacetone phosphate; 1,3BGP, 1,3-bisphosphoglycerate; 3PG, 3-phosphoglycerate; 2PG, 2-phosphoglycerate; PEP, phosphoenolpyruvate; Pyr, pyruvate; Ac-CoA, acetyl-CoA; Ac-P, acetyl-phosphate; OAA, oxaloacetate; Mal, malate; Fum, fumarate; Suc-CoA, succinyl-CoA; L-MM-CoA, L-methylmalonyl-CoA; D-MM-CoA, D-methylmalonyl-CoA; Pr-CoA, propionyl-CoA; Fdox, oxidized ferredoxin; Fdred, reduced ferredoxin (two reduced iron-sulfur clusters); NADox, oxidized NAD; NADred, reduced NAD; CoA, coenzyme A; Pi, inorganic phosphate; Qox, oxidized quinone; Qred, reduced quinone. See Supplementary Tables S3 and S4 for more information.
