Figure 1
From: New opto-electro-mechanical sensor for two-dimensions dosimetry based on radiochromic films

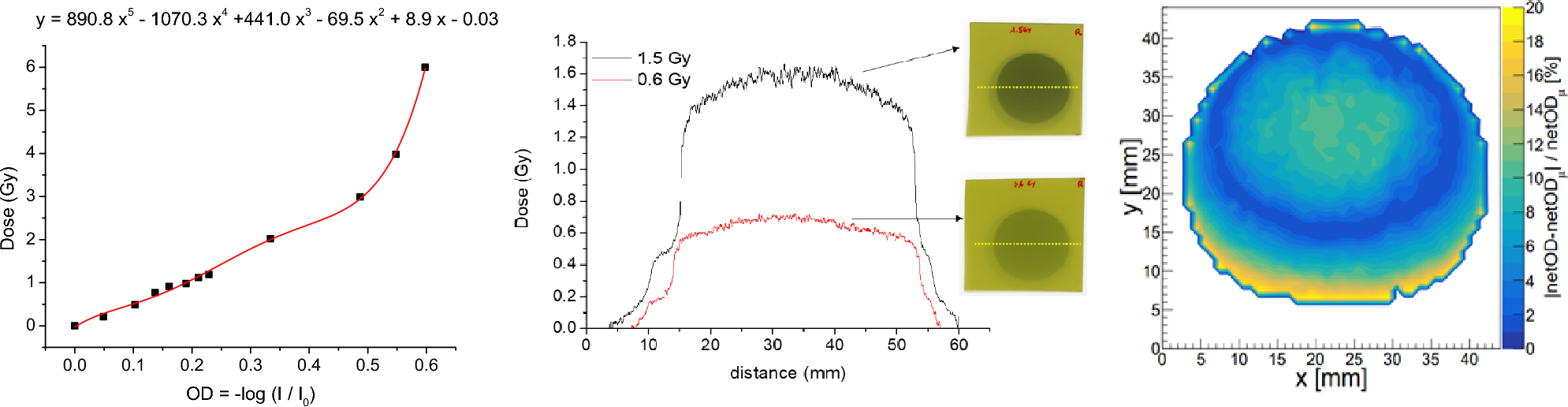

Left Calibration curve obtained by the scanner method. Medium dose profiles of the two films irradiated with 0.6 and 1.5 Gy. The insets show both gafchromic films irradiated. The yellow dash lines represent the lateral sections where the dose profiles were extracted from. Right Measured dose distributions that show the displacement of the beam intensity in terms of the percentage of OD dispersion for a gafchromic EBT3 film irradiated at 4 Gy.
