Figure 7

From: Establishment of the microstructure of porous materials and its relationship with effective mechanical properties

Figure 7

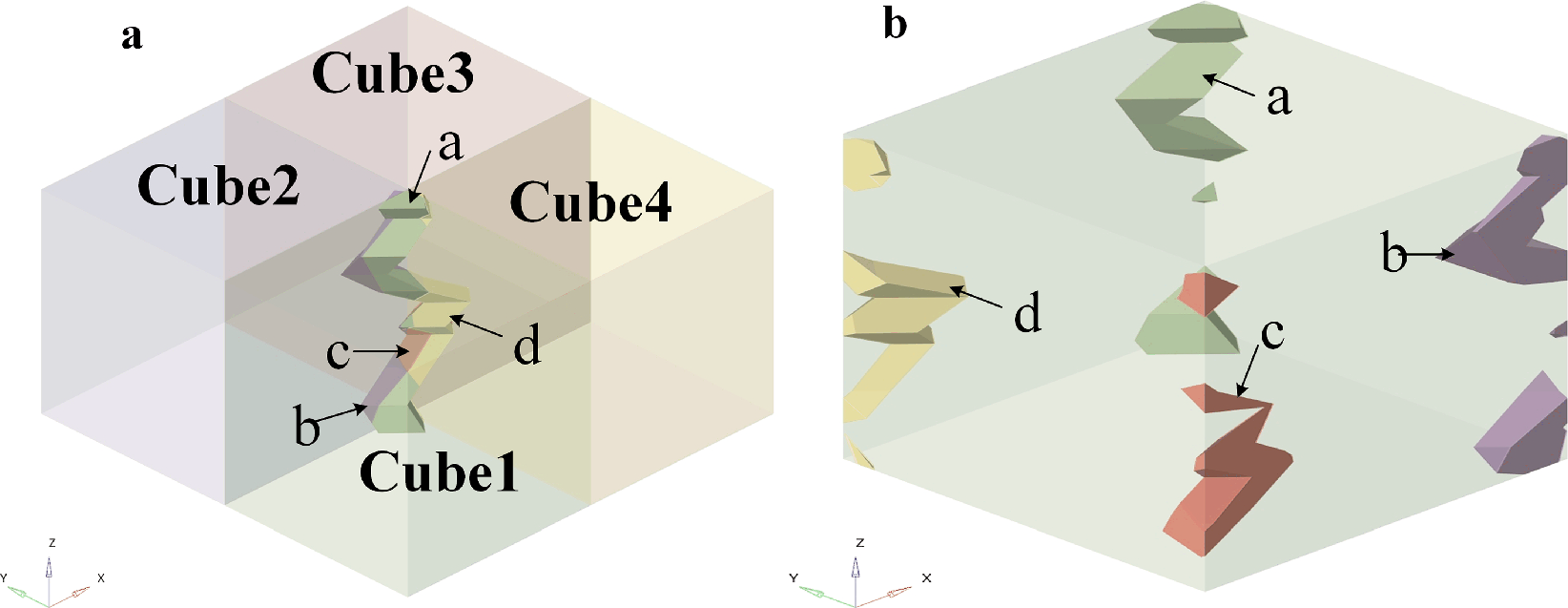

The pore passes over one edge and two faces. (a) Four RVEs share a pore. Cube1 denotes the initial RVE; Cube2, Cube3, and Cube4 denote adjacent RVEs; a is the portion of the pore located within the initial RVE; b, c, and d denote portions of the pore located within adjacent RVEs, respectively; (b) the pore beyond the boundary is transferred to the corresponding relative surface of the initial RVE.
