Figure 6 | Scientific Reports

Figure 6

From: Simulation examining the factors influencing capillary wick transport in a refrigerant direct cooling system for power battery packs

Figure 6

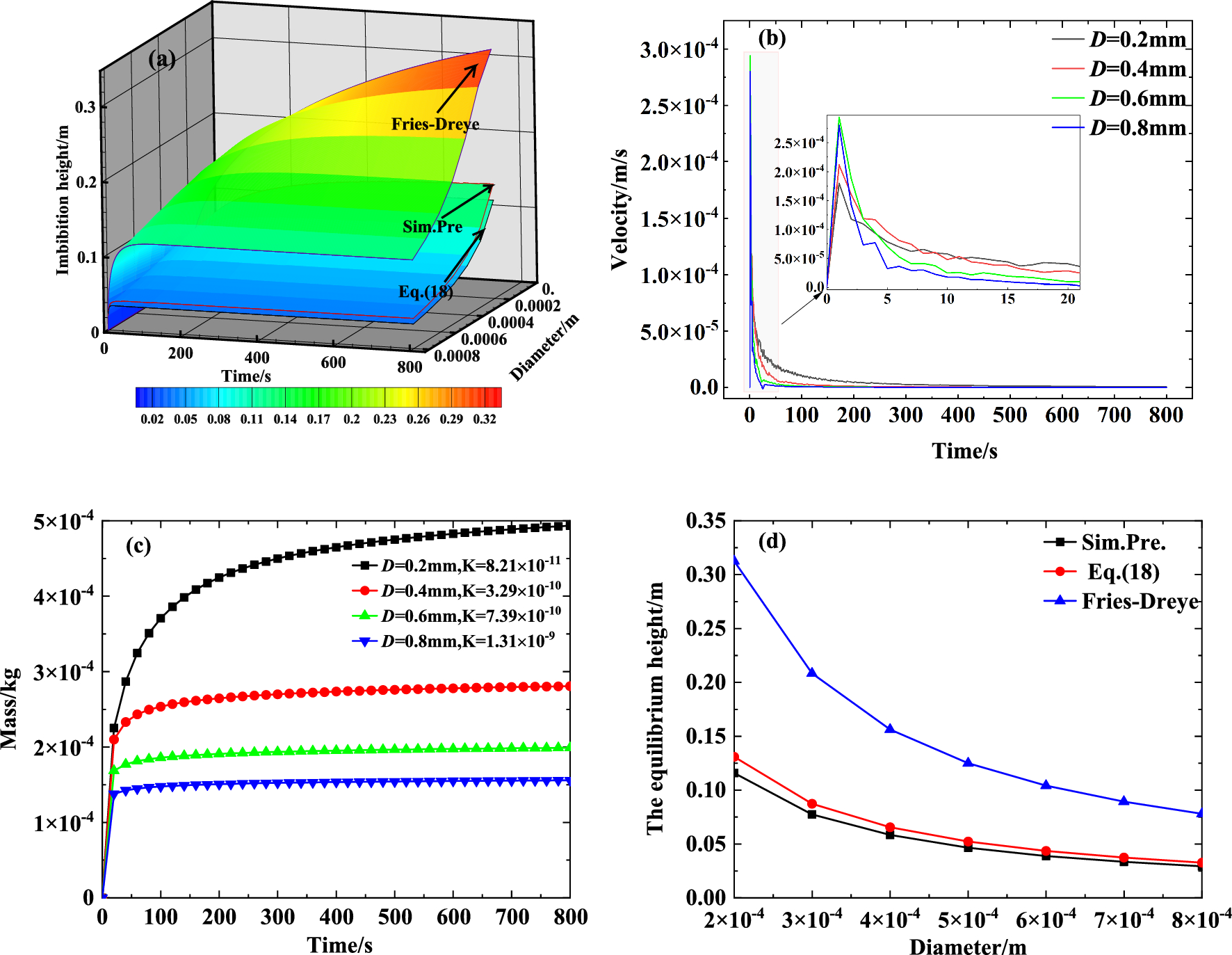

The influence of particle diameter on the transport performance of a capillary wick: (a) Comparison diagram of the influence of particle diameter on the height of the liquid rise; (b) The influence of particle diameter on the velocity of the liquid; (c) The influence of particle diameter on the mass of the liquid rise; (d) Comparison diagram of the influence of particle diameter on the equilibrium height of the liquid rise.
