Figure 7

From: Simulation examining the factors influencing capillary wick transport in a refrigerant direct cooling system for power battery packs

Figure 7

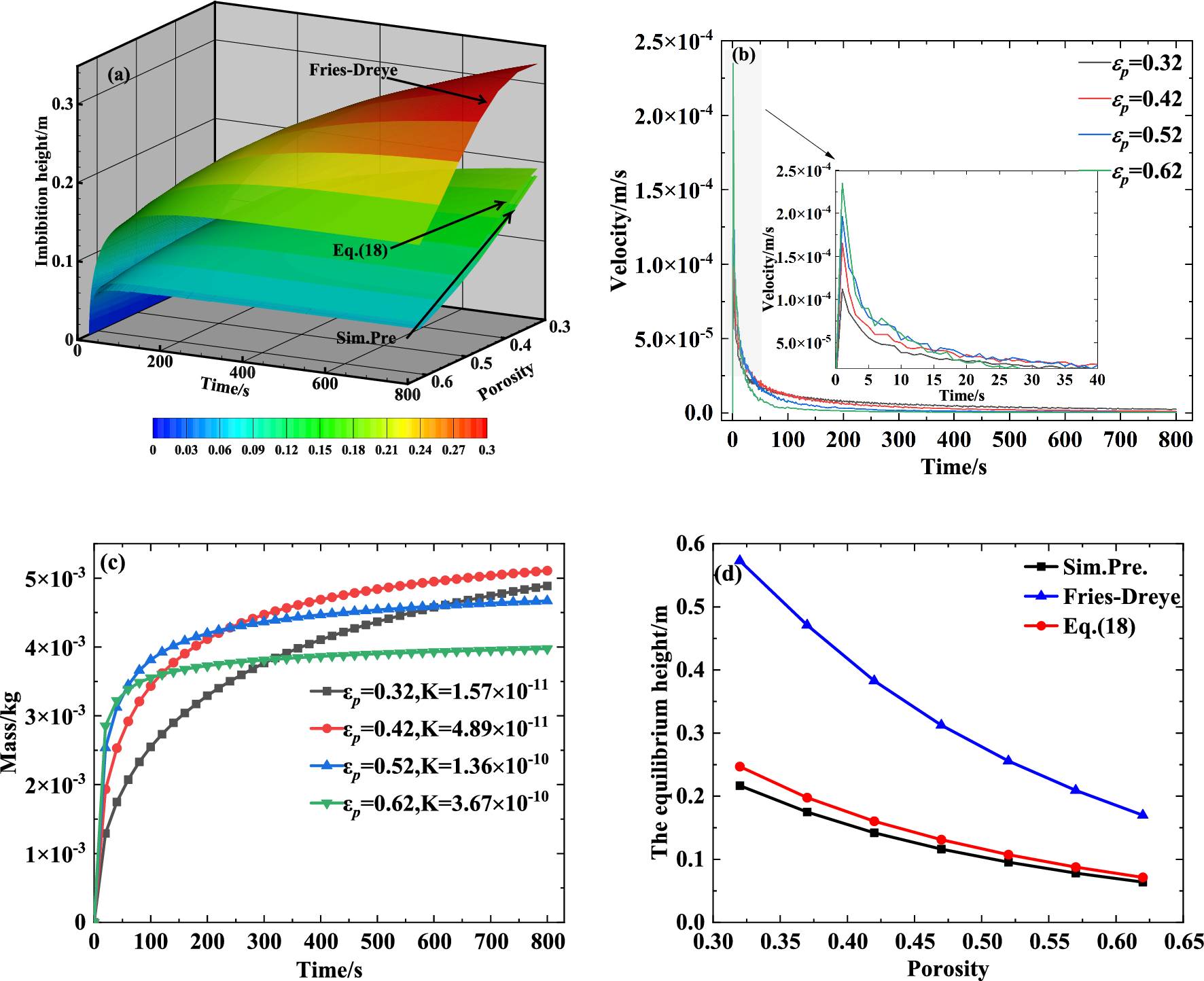

The influence of porosity on the transport performance of a capillary wick: (a) Comparison diagram of the influence of the porosity on the height of the liquid rise; (b) The influence of porosity on the velocity of the liquid rise; (c) The influence of porosity on the mass of the liquid rise; (d) Comparison diagram of the influence of porosity on the equilibrium height of the liquid rise.
