From: Simulation examining the factors influencing capillary wick transport in a refrigerant direct cooling system for power battery packs

Figure 8

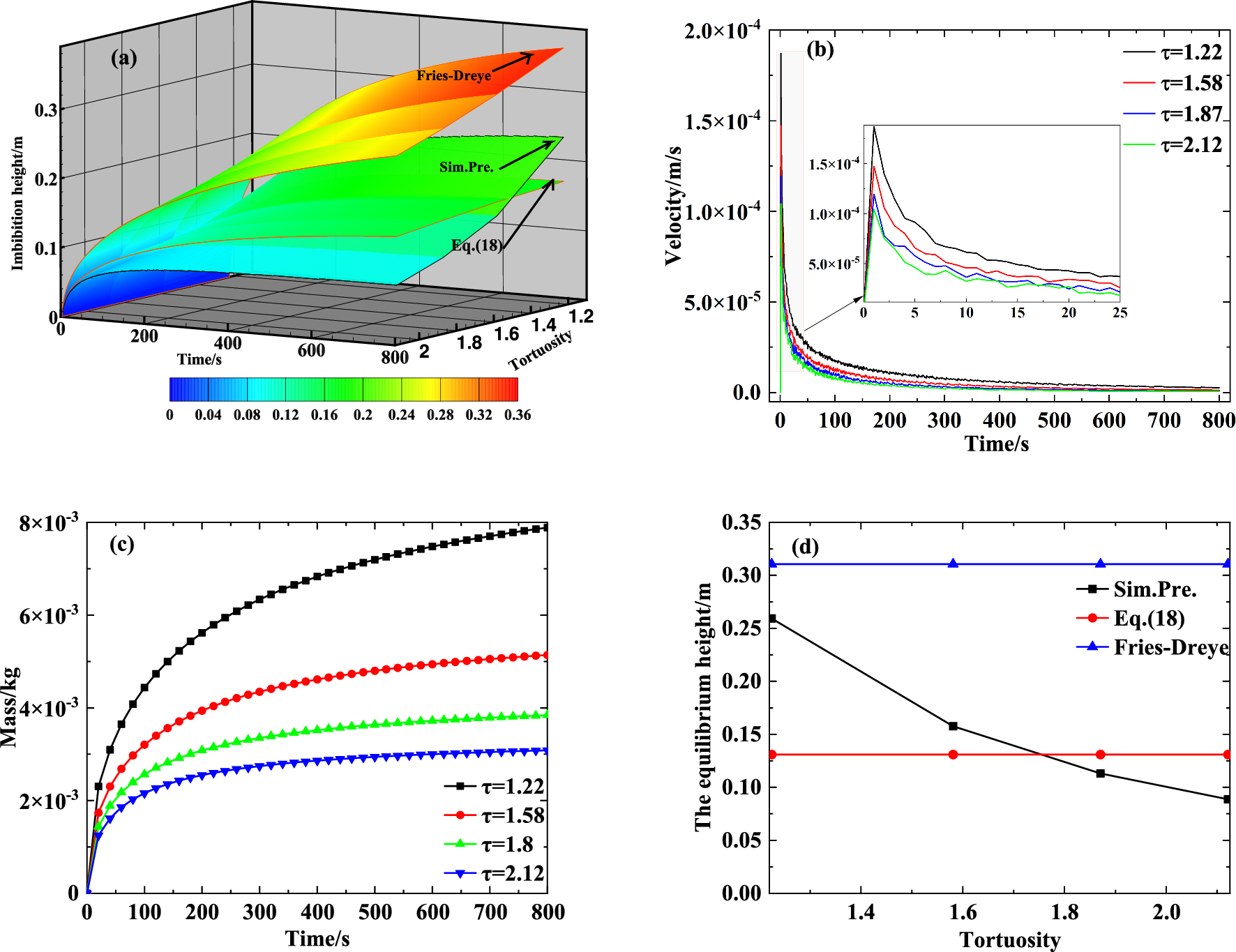

The influence of tortuosity on the transport performance of capillary wick: (a) Comparison diagram of the influence of tortuosity on the height of the liquid rise; (b) The influence of tortuosity on the velocity of the liquid rise; (c) The influence of tortuosity on the mass of the liquid rise; (d) Comparison diagram of the influence of tortuosity on the equilibrium height of the liquid rise.
