Figure 12
From: Force prediction in the cylindrical grip for a model of hand prosthesis

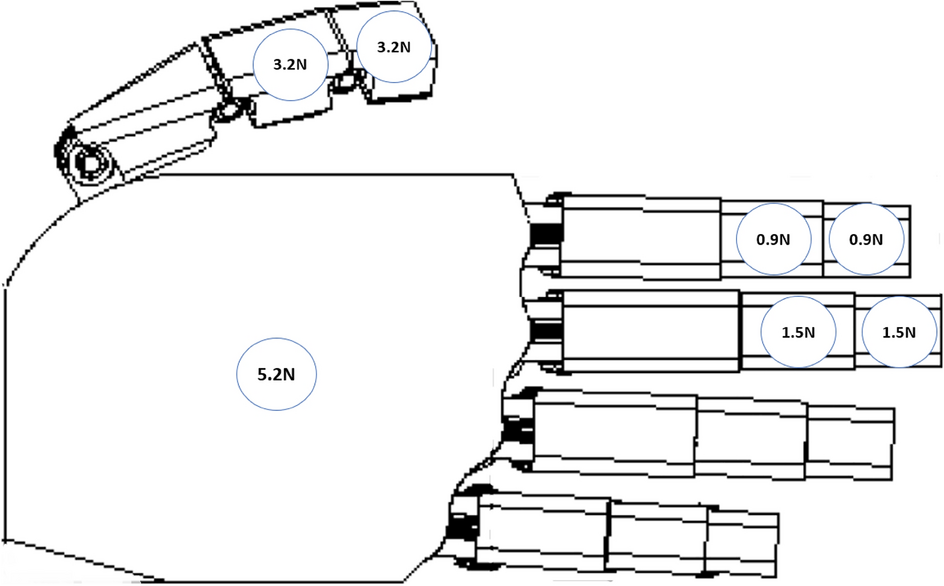

Modulus of forces acting on the load-transferring phalanges and the metacarpal part in the cylindrical grip (1 kg, d = 70 mm) calculated using the analytical method.
