Figure 5
From: Height detection of crop divider toes of sugarcane harvester based on Kalman adaptive adjustment

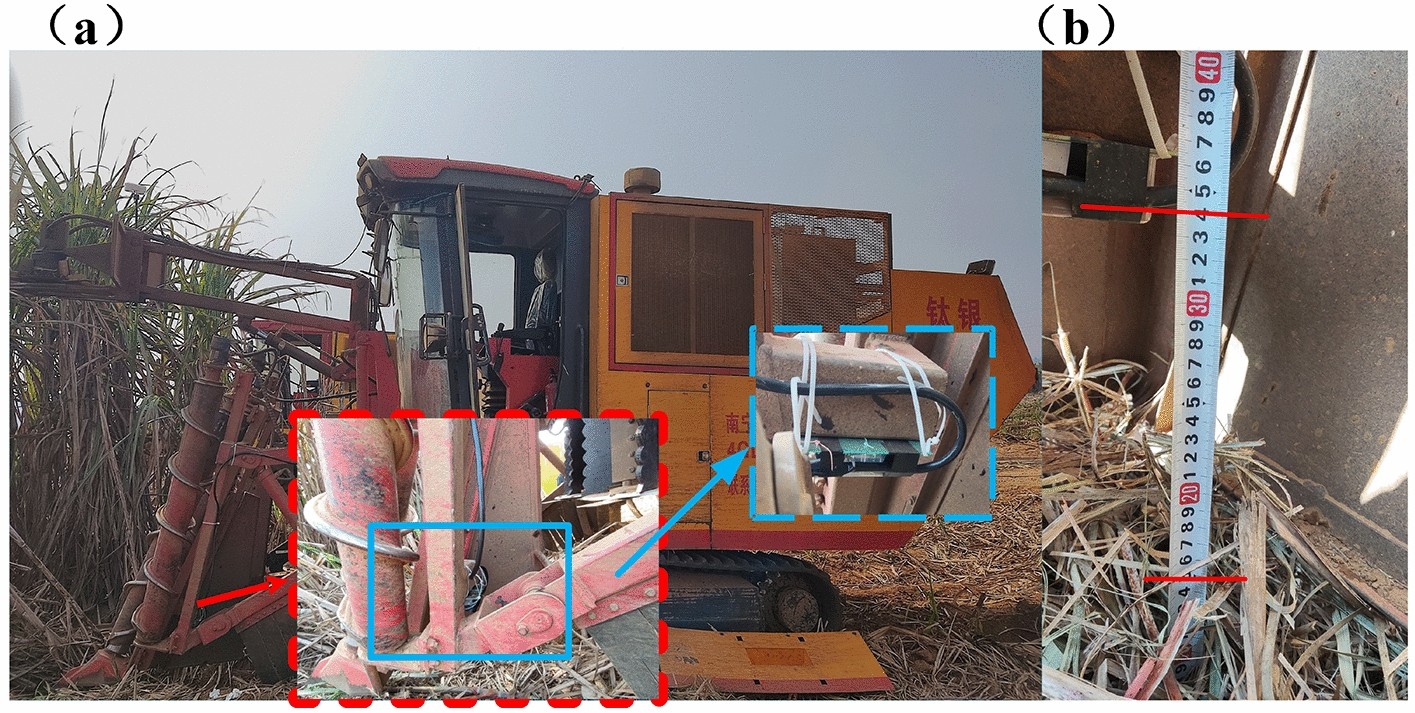

Field test situation map: (a) Distance measurement module installation location; (b) Actual height of the installation position from the ground 34 cm and vegetation cover thickness of sugarcane field 5 cm.
