Figure 10
From: High-efficacy global optimization of antenna structures by means of simplex-based predictors

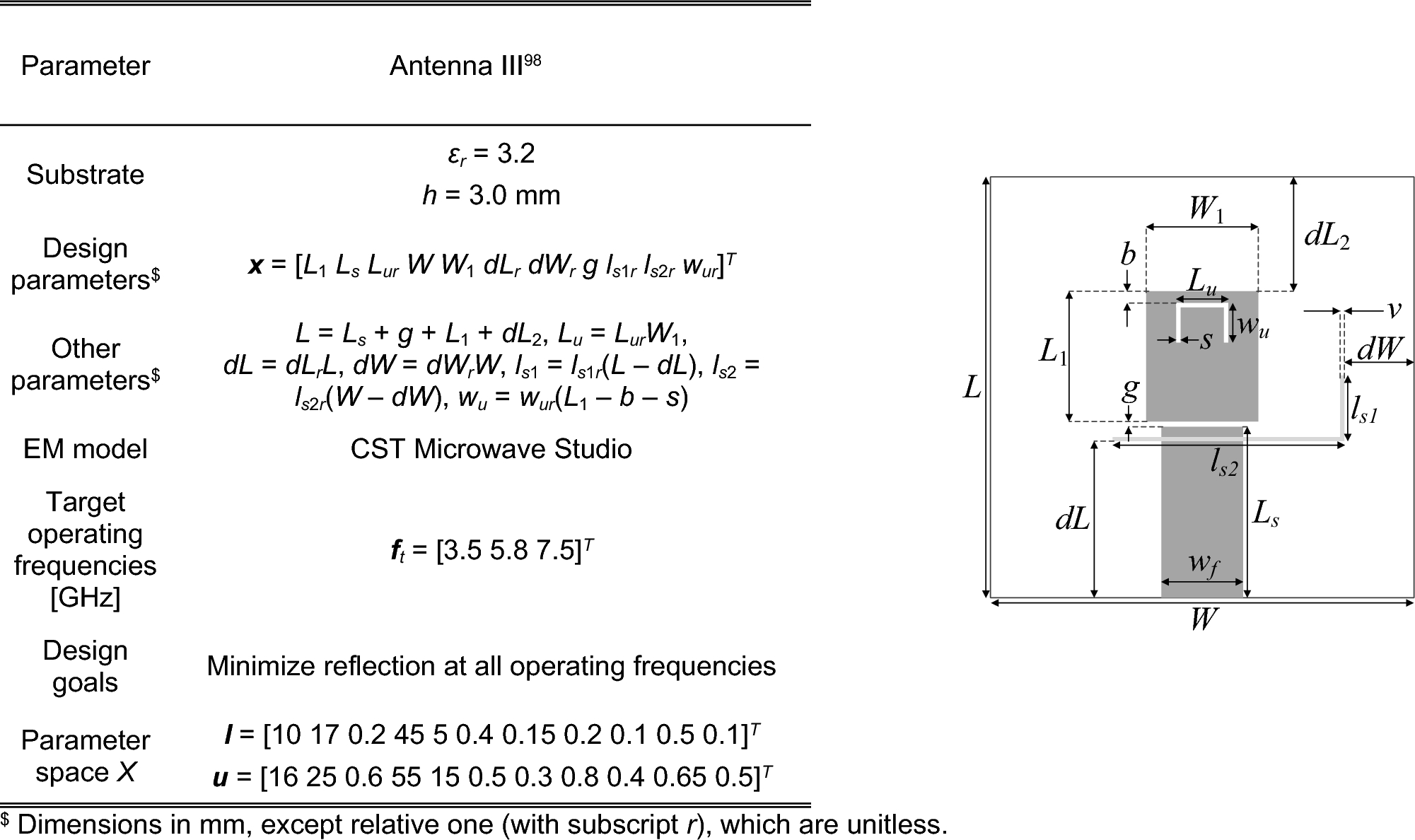

Antenna III98: triple-band U-slotted patch antenna with defected ground structure (DSG), the light-shade grey denotes a ground-plane slot; parameters (left), and antenna geometry (right).
