Figure 2
From: Bayesian learning from multi-way EEG feedback for robot navigation and target identification

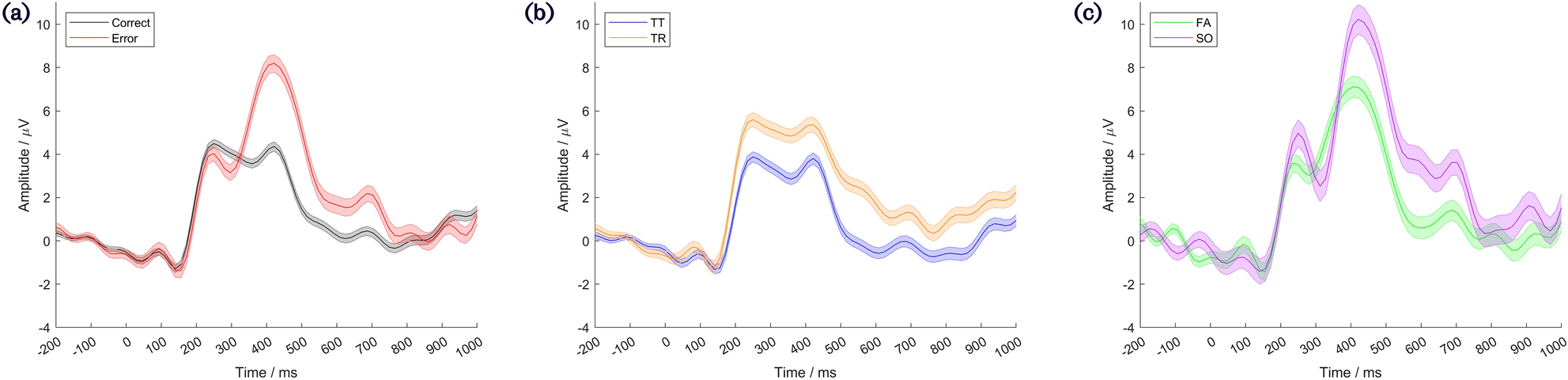

Grand average time domain EEG data generated as subjects observed virtual robot movements. (a) shows a comparison of responses to correct movements (black, lower peak) to erroneous movements (red, higher peak). (b) shows a comparison of responses to the two correct movements - the TT condition (blue, lower peak), and the TR condition (orange, higher peak). (c) shows a comparison of responses to the two erroneous movements - the FA condition (green, lower peak), and the SO condition (purple, higher peak).
