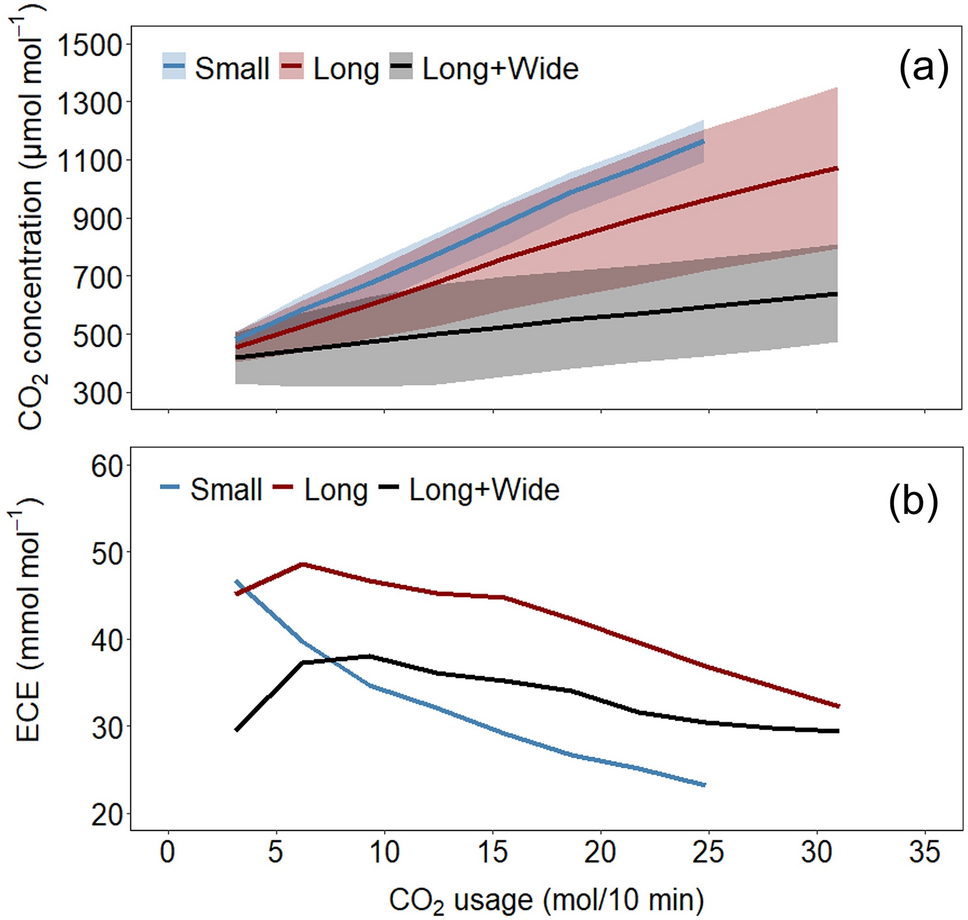

Figure 13

The relationships of the average CO₂ concentration at the 1.5 m height plane with standard deviation shown as the colour band (a) and the efficiency of CO₂ enrichment (ECE) (b) with the amount of CO₂ usage in three greenhouses (Small, Long and Long + Wide Greenhouses).
