From: Setup accuracy and margins for surface-guided radiotherapy (SGRT) of head, thorax, abdomen, and pelvic target volumes

Figure 3

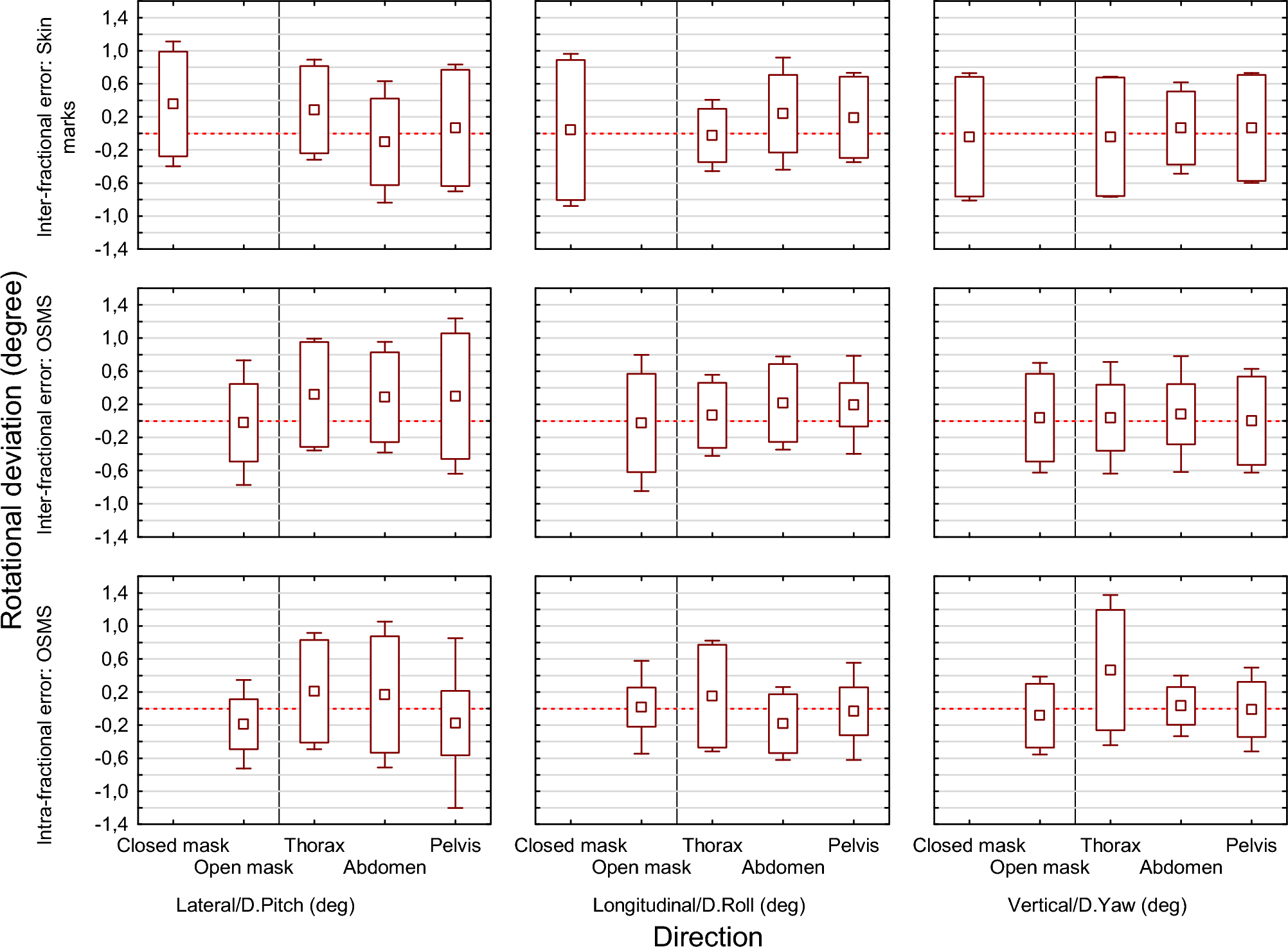

Overall population mean setup error (rectangle), population systematic error (box), and population random error (whiskers) of the inter-fractional rotational error using laser alignment with skin marks, inter-fractional rotational error (mm) using OSMS, and intra-fractional rotational error using OSMS by direction and location of the target volume.
