Figure 5
From: Arthrocentesis approaches to the phalangeal joints of the one humped camel (Camelus dromedarius)

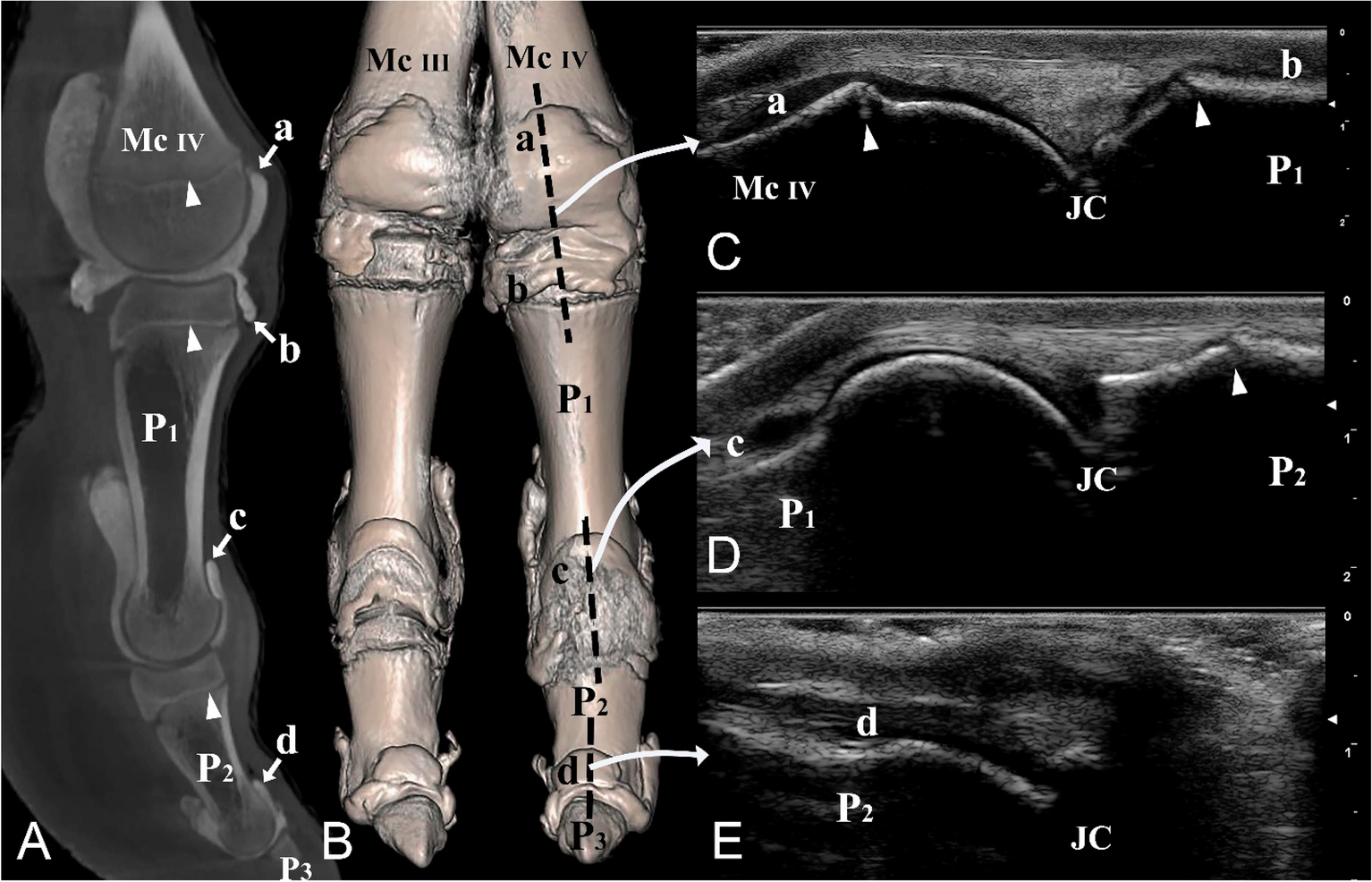

Dorsal and lateral views of the left distal forelimb and digit IV. (A) Sagittal plane CT image; (B) three-dimensional reconstruction (the black dotted line indicating the dorsal placement of the ultrasound probe), (C) longitudinal dorsal ultrasound image of the metacarpophalangeal joint, (D) longitudinal dorsal ultrasound image of the proximal interphalangeal joint, and (E) longitudinal dorsal ultrasound image of the distal interphalangeal joint. Mc III distal end of metacarpal bone III, Mc IV distal end of metacarpal bone IV, P1 proximal phalanx, P2 middle phalanx, P3 distal phalanx, a proximal dorsal recess of the metacarpophalangeal joint, b distal dorsal recess of the metacarpophalangeal joint, c proximal dorsal recess of the proximal interphalangeal joint, d proximal dorsal recess of the distal interphalangeal joint, JC joint cavity. White arrowheads indicate the epiphyseal lines.
