Figure 6
From: Arthrocentesis approaches to the phalangeal joints of the one humped camel (Camelus dromedarius)

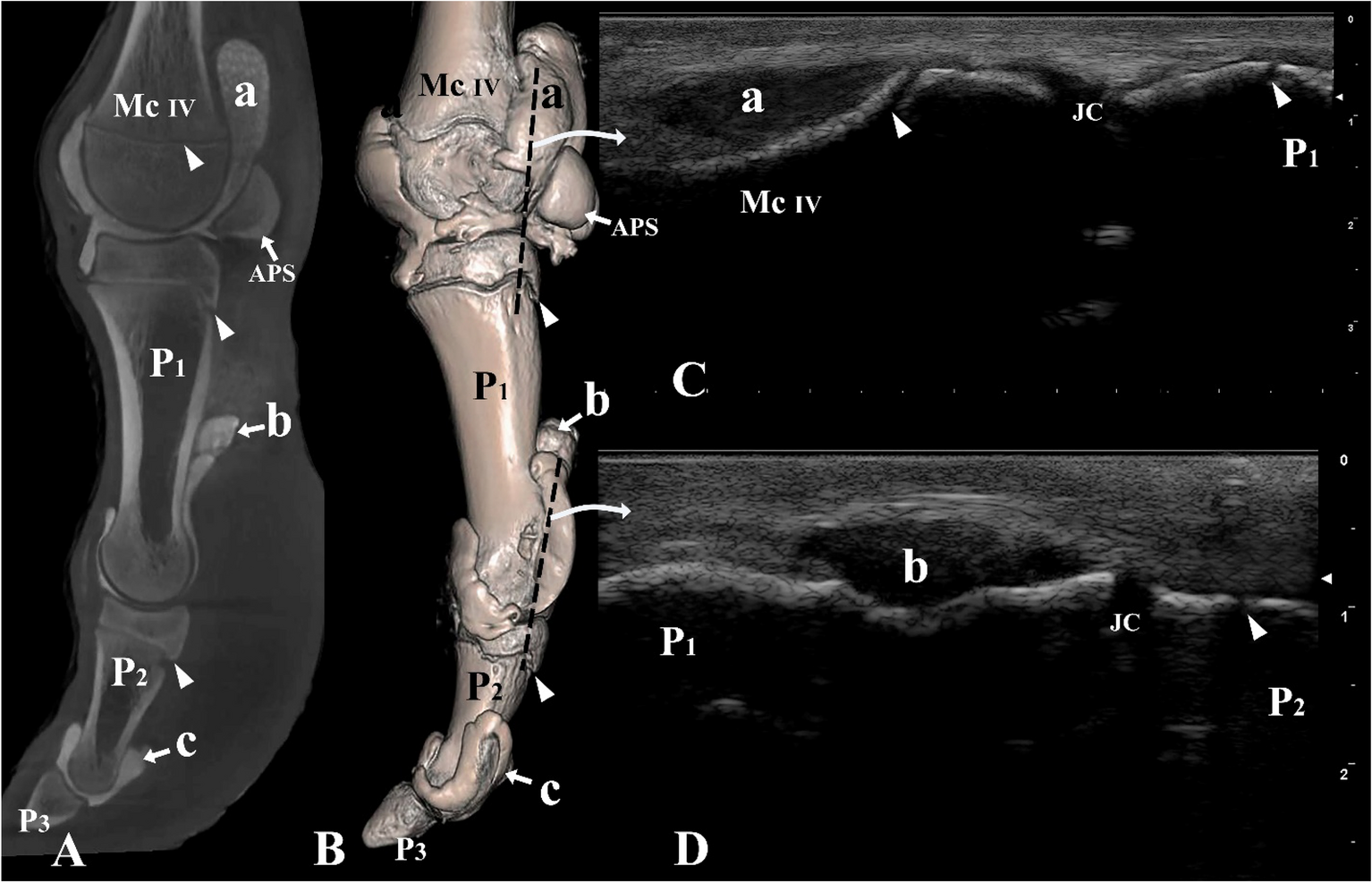

Lateral view of the left digit IV. (A) Sagittal plane CT image; (B) three-dimensional reconstruction (the black dotted line indicating the placement of the ultrasound probe), (C) longitudinal lateral ultrasound image of the metacarpophalangeal joint, and (D) longitudinal lateral ultrasound image of the proximal interphalangeal joint. Mc IV distal end of metacarpal bone IV, P1 proximal phalanx, P2 middle phalanx, P3 distal phalanx, APS abaxial proximal sesamoid bone, a proximal palmar pouch of the metacarpophalangeal joint, b proximal palmar pouch of the proximal interphalangeal joint, c proximal palmar pouch of the distal interphalangeal joint, JC joint cavity. White arrowheads indicate the epiphyseal lines.
