Figure 2

From: Mechanical properties and sustainable bacterial resistance effect of strontium-modified phosphate-based glass microfiller in dental composite resins

Figure 2

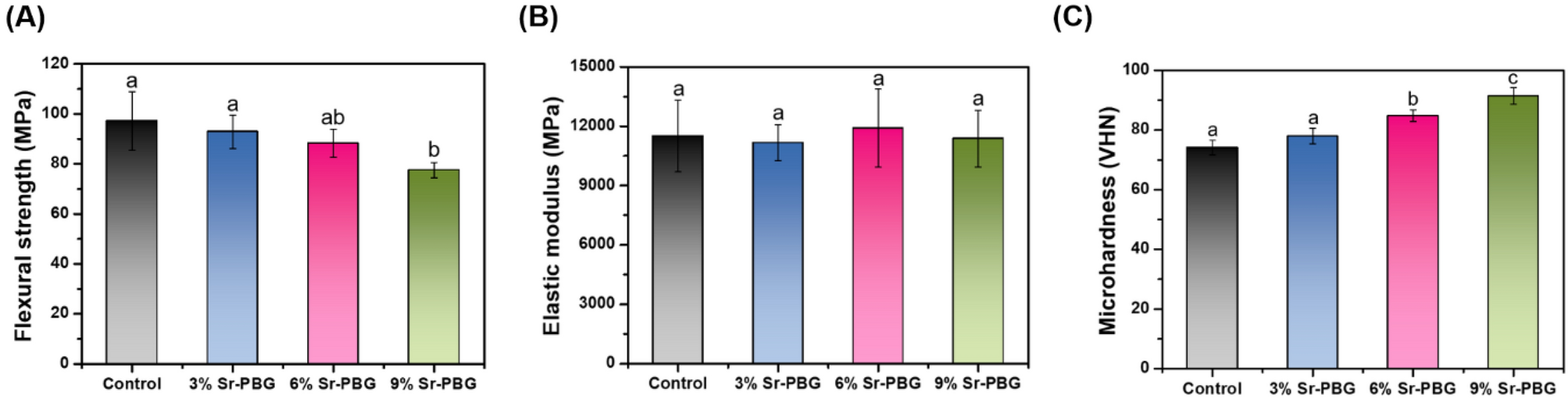

Mechanical properties of the strontium-modified phosphate-based glass (Sr-PBG) samples before thermocycling: (A) flexural strength, (B) elastic modulus, and (C) Vickers hardness. Different lowercase letters above the bars indicate significant differences, as determined by the Tukey's post-hoc test and the error bars represent the standard deviation of the mean.
