Figure 2

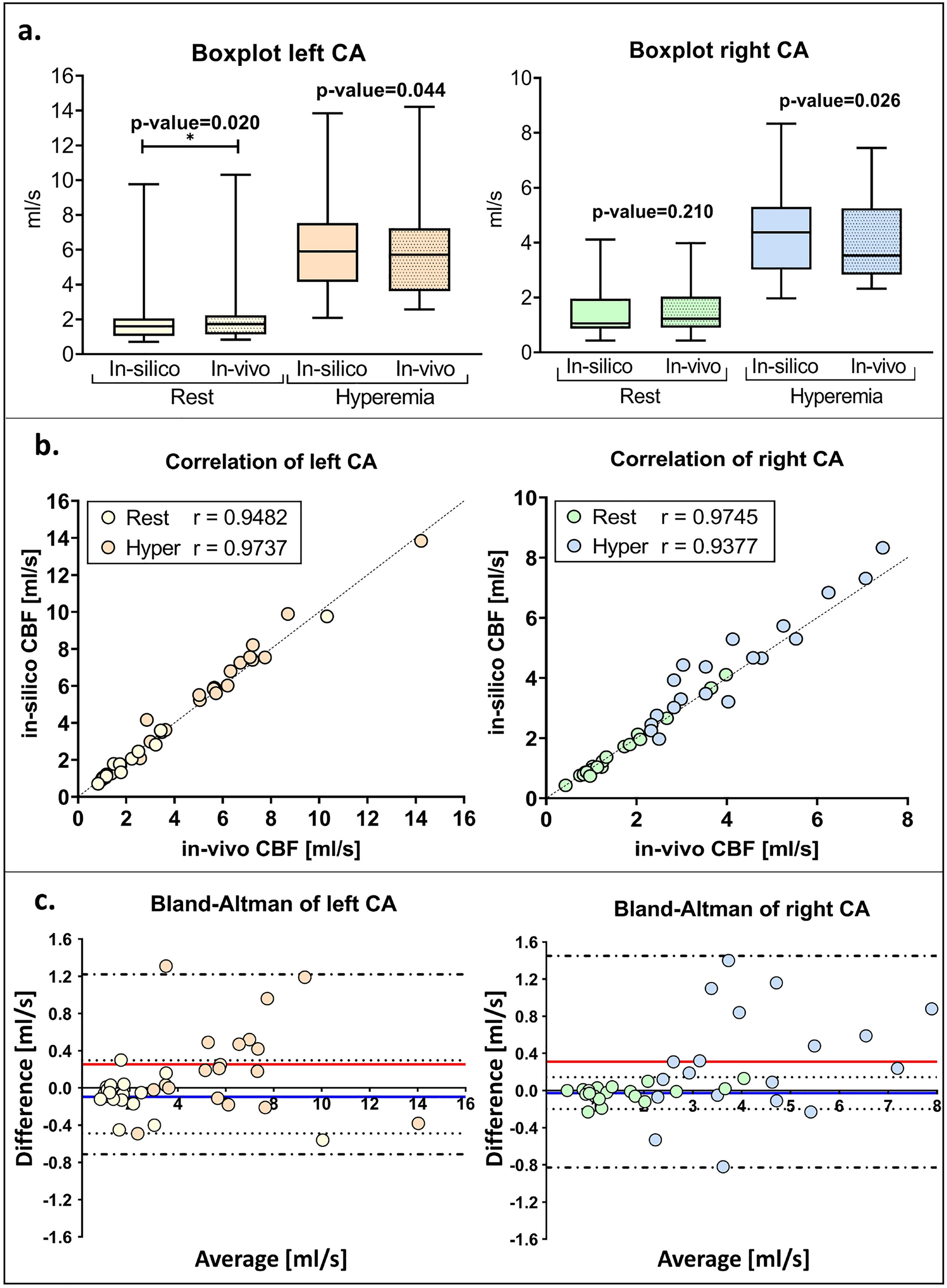

Results of the model and comparison with in-vivo data. (a) In-silico computed CBF and in-vivo measured CBF are shown in the boxplots; only significant differences are highlighted (*). (b) Scatter plots and correlation analysis are shown. The results related to the left CA are presented on the left, and those corresponding to the right CA are reported on the right. Left CA results are represented in yellow and orange for rest and hyperemic conditions, respectively. Right CA results are presented in green and blue for rest and hyperemic conditions, respectively. (c) Bland-Altman plot analysis was shown for both left and right CA. Difference between in-silico and in-vivo CBF were reported on y-axis, the average was reported on the x-axis. Horizontal dashed lines represented the the 95\(\%\) limits of agreement of rest (docs) and hyperemic (doc and line) condition. The blue and red lines represented the average discrepancy between in-silico and in-vivo measurements for rest and hyperemia, respectively.
