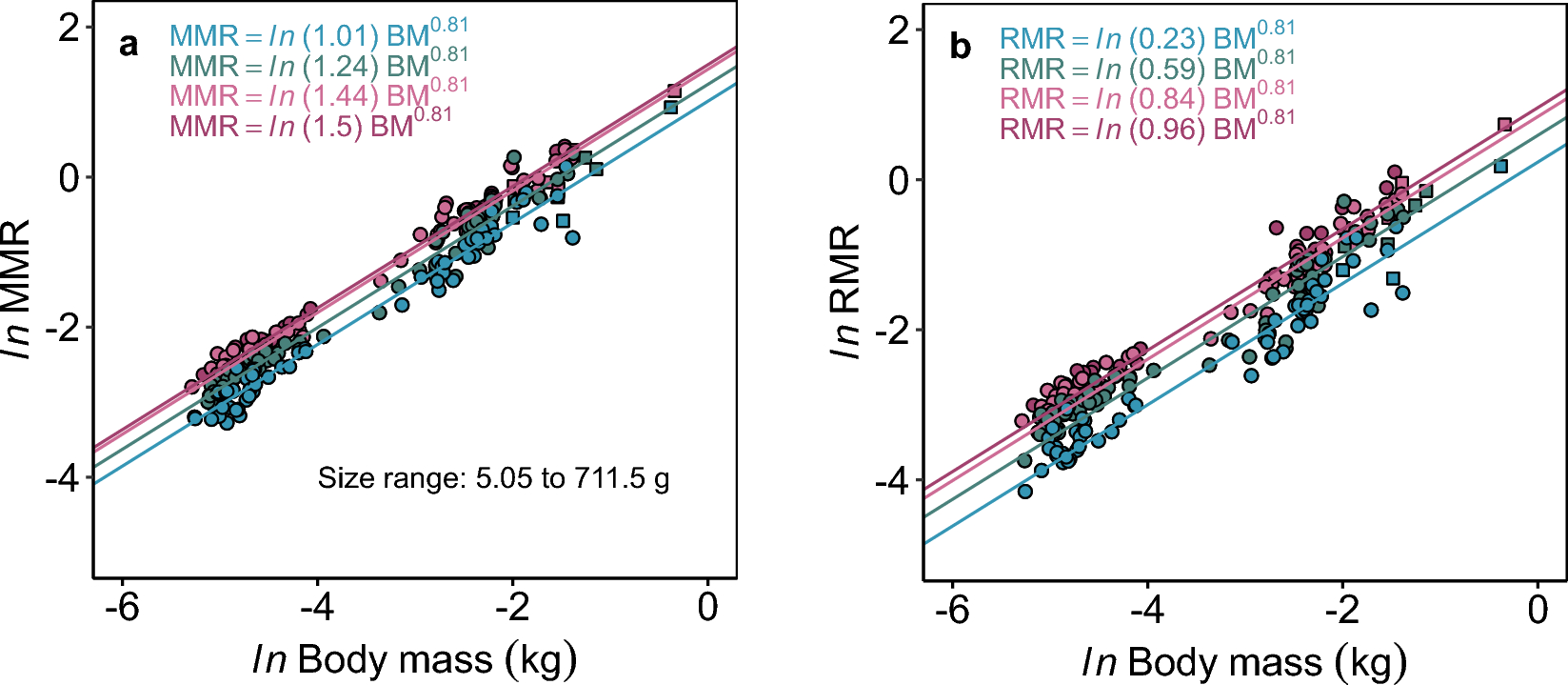

Figure 3
From: Body size and temperature affect metabolic and cardiac thermal tolerance in fish
Consistent hypoallometric scaling of maximum and resting metabolic rates across acute temperatures in barred surfperch. (a) Maximum metabolic rates (MMR) and (b) resting metabolic rates (RMR) scaled similarly with b = 0.81 and consistently with acute temperature change from 16 °C to 12 °C (blue), 16 °C (green; control), 20 °C (light pink), and 22 °C (dark pink) (mixed model estimates). The squares are reproductively active females. Fish were repeat tested at each temperature; MMR: n = 83 (238); RMR: n = 81 (233), individuals (observations).
