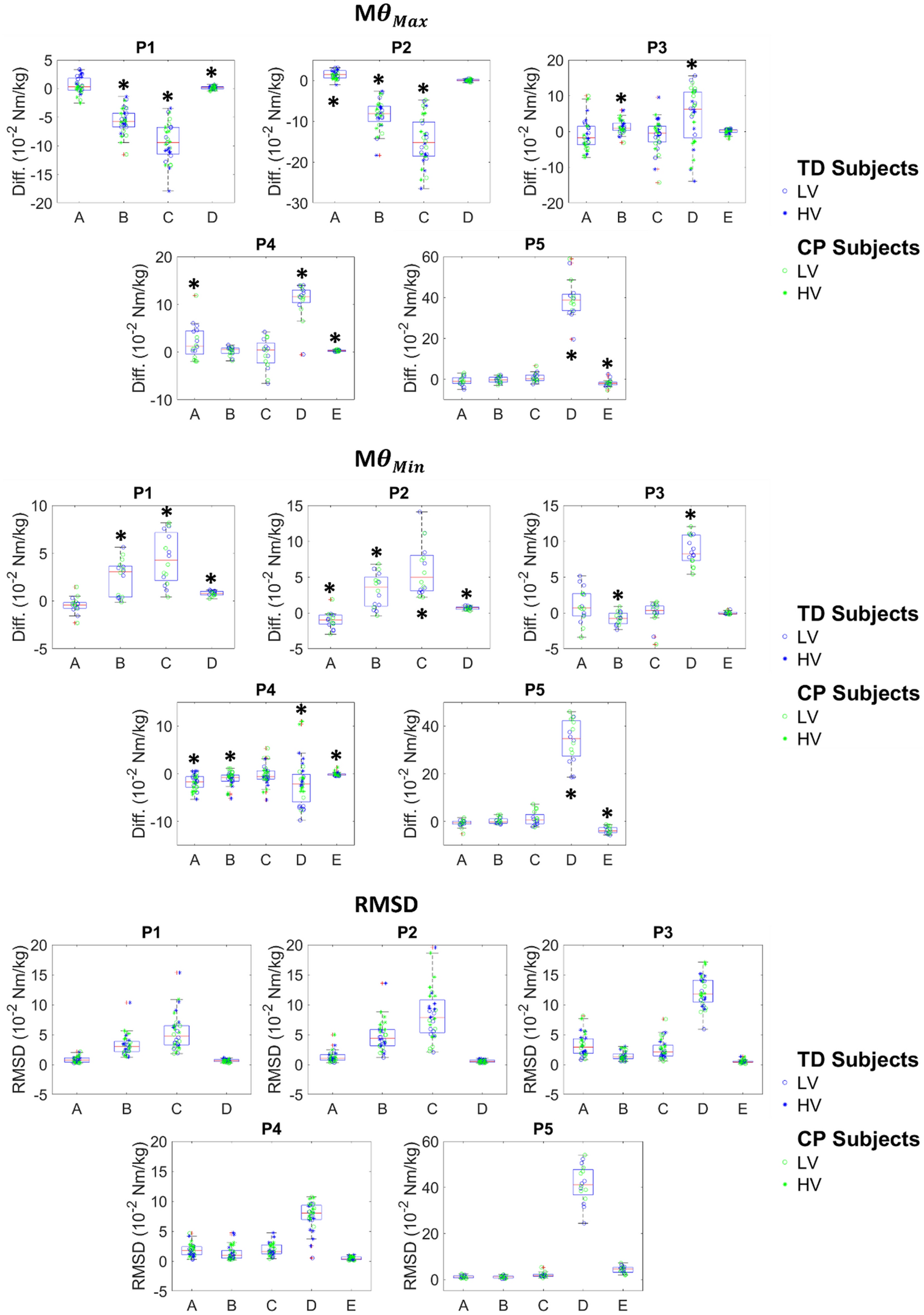

Figure 3
From: Common modelling assumptions affect the joint moments measured during passive joint mobilizations
MθMax, MθMin and RMSD differences (10−2 Nm/kg) of healthy and pathological subjects obtained for the different studied cases in all the positions. Asterisks indicate statically significant differences with the reference 3D inverse dynamics approach.
