Figure 8
From: Brain-computer interface for robot control with eye artifacts for assistive applications

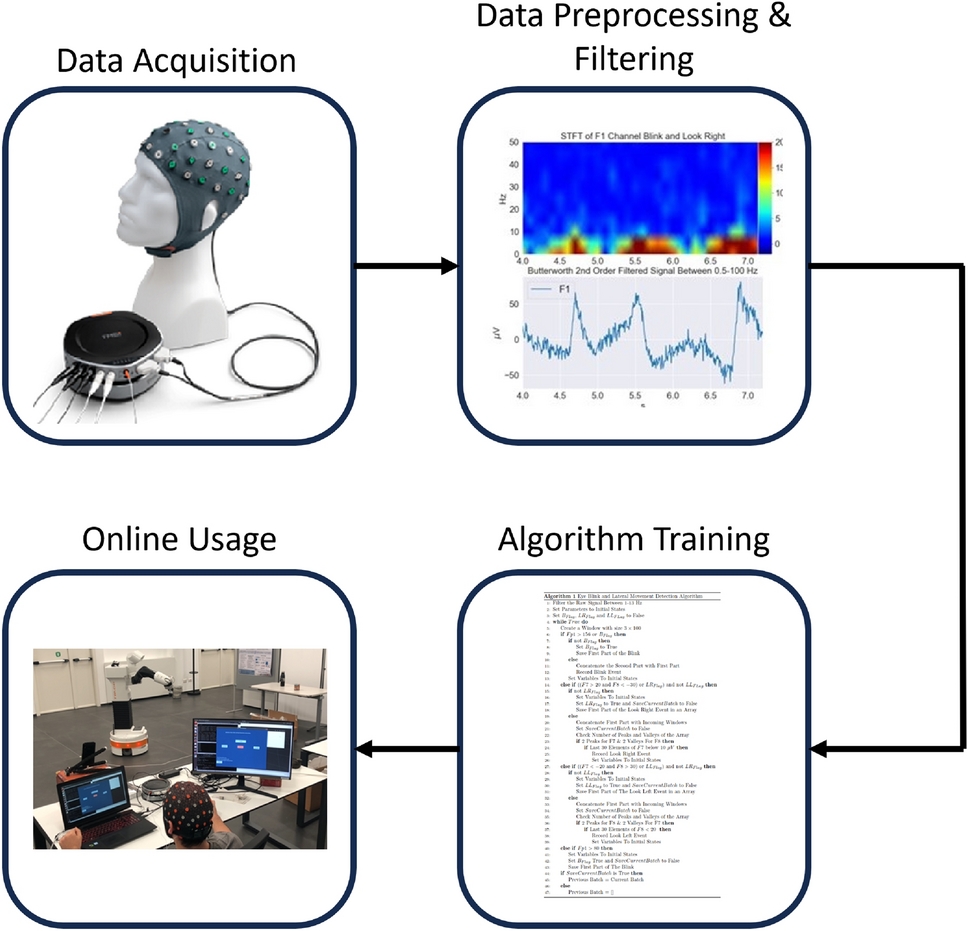

The data flow and processing schema is shown. The data are acquired from the SAGA device. Then, the data are preprocessed and filtered. The training algorithm is fed with the processed data. Finally, the trained algorithm is used online in the human-robot interaction application.
