Figure 10
From: A new approach to predict microhardness of two-phase in cutting S32760 duplex stainless steel

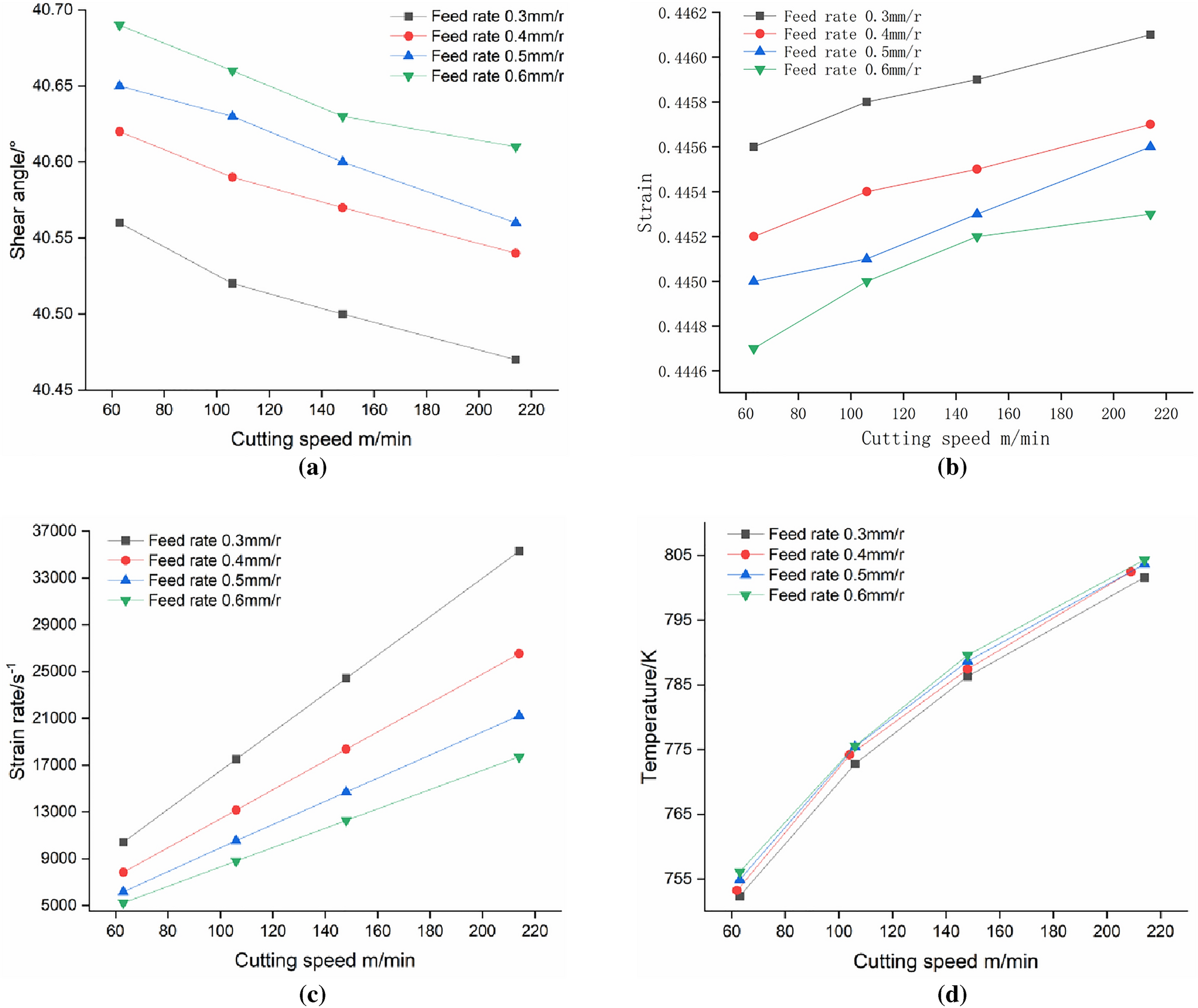

The effect of cutting dosages on shear parameters: (a) shear angle; (b) strain; (c) strain rate; and (d) temperature.
