Figure 3
From: Fungicides modify pest insect fitness depending on their genotype and population

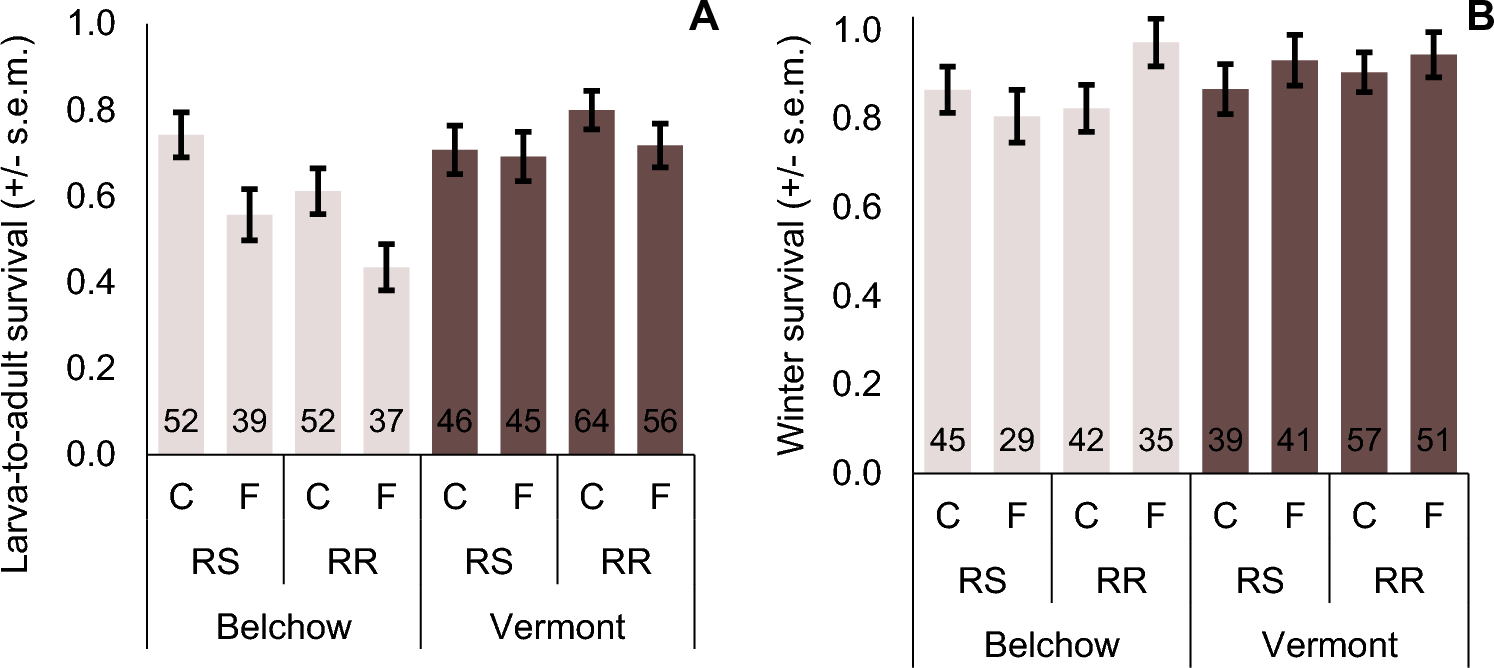

(A) Larva-to-adult and (B) winter survival (+ / − s.e.m.) in Belchow and Vermont populations. Fungicide exposure significantly reduces larva-to-adult survival in the Belchow population. RS marks the heterozygous and RR homozygous families for the S291G point mutation in the acetylcholinesterase-2 gene. C marks for control and F for fluazinam fungicide treatment. Numbers in the column base show the sample size of the survived individuals.
