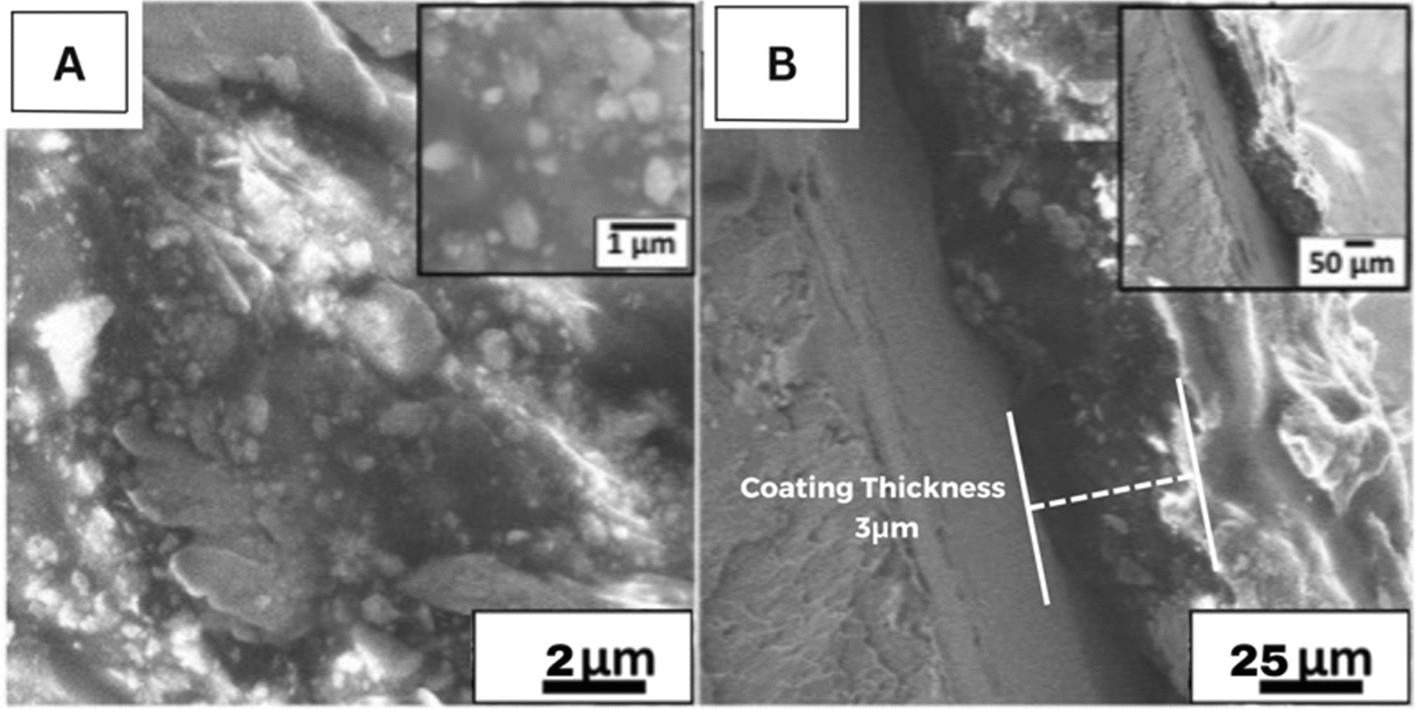

Figure 3
SEM images (A) shows uniformly distributed and induced BG and HA particles, respectively at 5 kX and 150 kX magnification, (B) shows cross-sectional SEM image of XDA/CS/BG/HA/lawsone.
Figure 3 | Scientific Reports
SEM images (A) shows uniformly distributed and induced BG and HA particles, respectively at 5 kX and 150 kX magnification, (B) shows cross-sectional SEM image of XDA/CS/BG/HA/lawsone.
