Figure 10
From: An S-band multimode reflector antenna for a satellite constellation tracking system

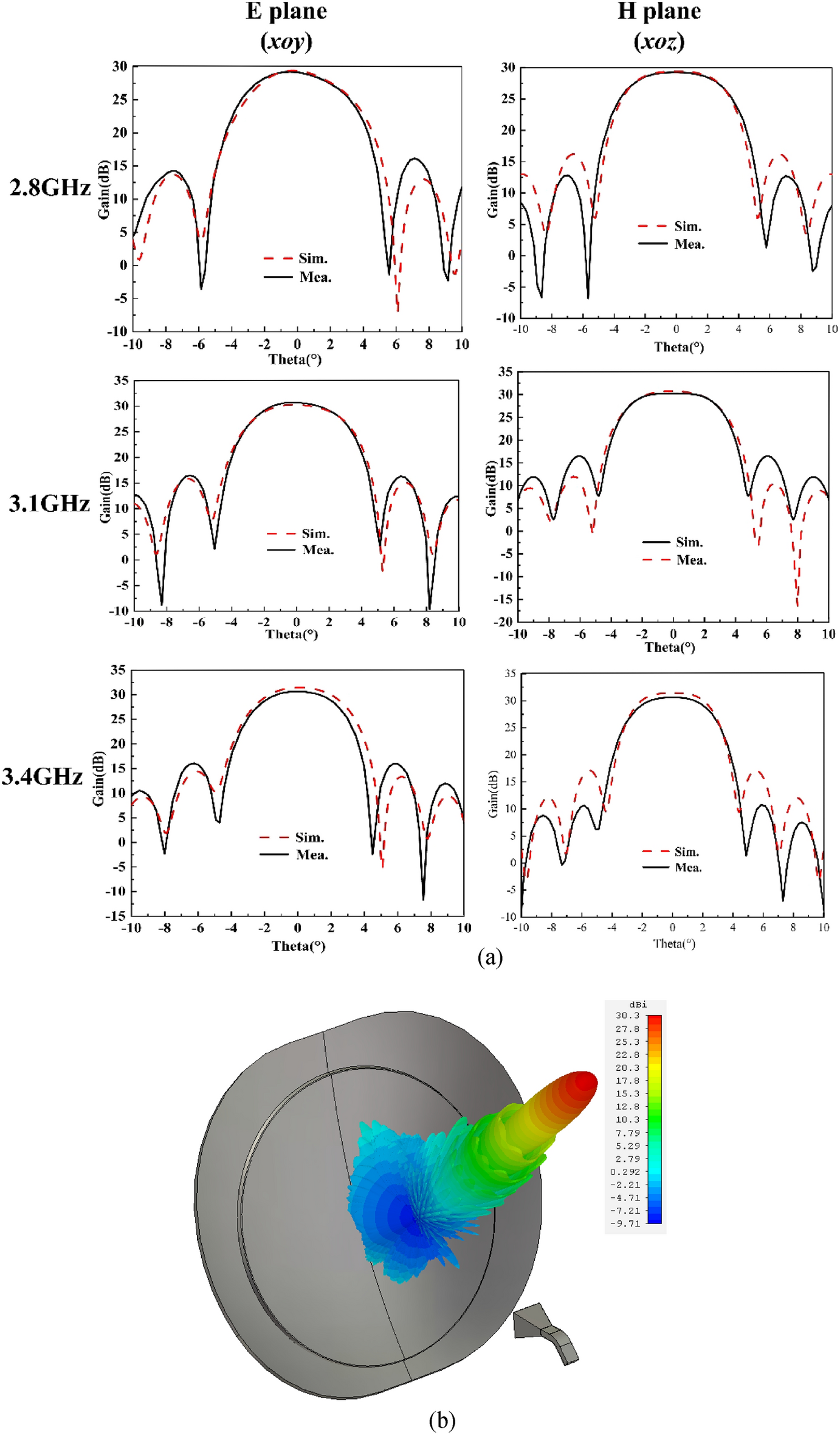

Measured and simulated radiation patterns of the antenna: (a) the pattern on the diagonal section; (b) simulated 3D radiation pattern at f = 3.1 GHz.
