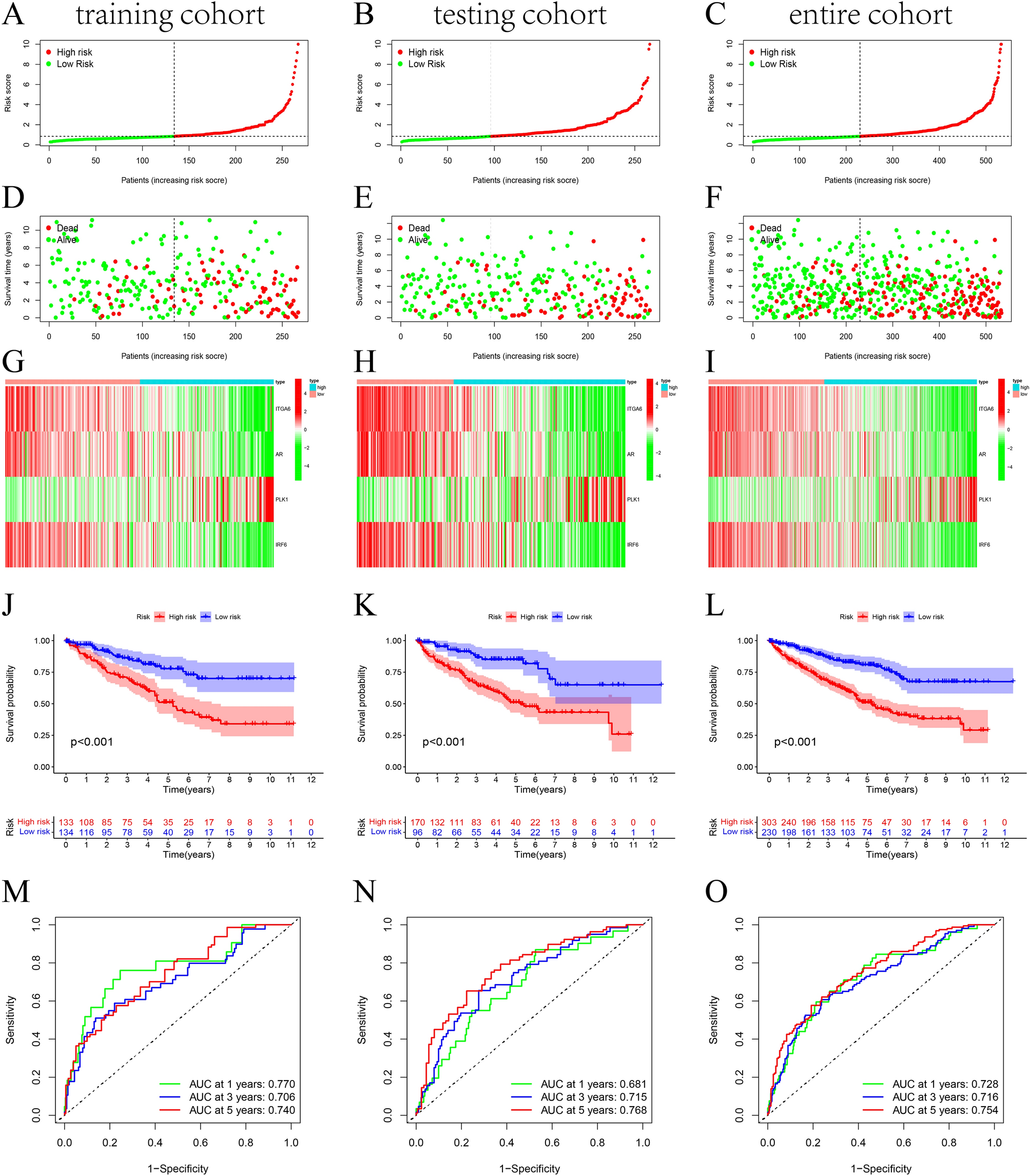

Figure 2
From: Identification of anoikis-related subtypes and immune landscape in kidney renal clear cell carcinoma
Construction and validation of anoikis-related signatures in training, testing, and the entire groups. The risk curve shows the distribution of risk scores between the high-risk and low-risk groups (A–C). Scatter plots show survival status and survival time (D–F), while heatmaps show the expression of four ARGs in high-risk and low-risk groups (G–I). Kapan Meier survival curves for overall survival (OS) of patients in the high-risk and low-risk groups (J–L). ROC analysis for predicting prognosis role of risk scores (M–O).
