Figure 7

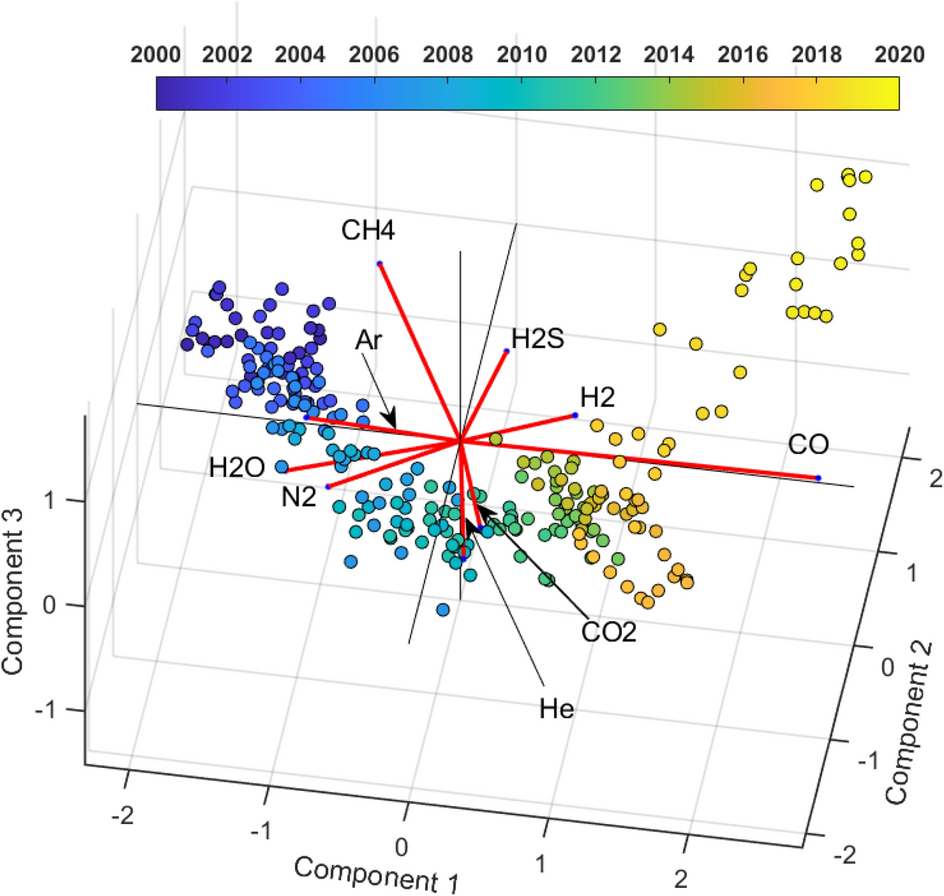

Relative covariance biplot of Centered Log Ratio (clr) Gas Species (in red) on the first three factorial planes (see text for details). Note that the scores distribution (colored dots), representing the system state, is not chaotic, it draws an evolutionary path.
