From: In silico engineering and simulation of RNA interferences nanoplatforms for osteoporosis treating and bone healing promoting

Figure 8

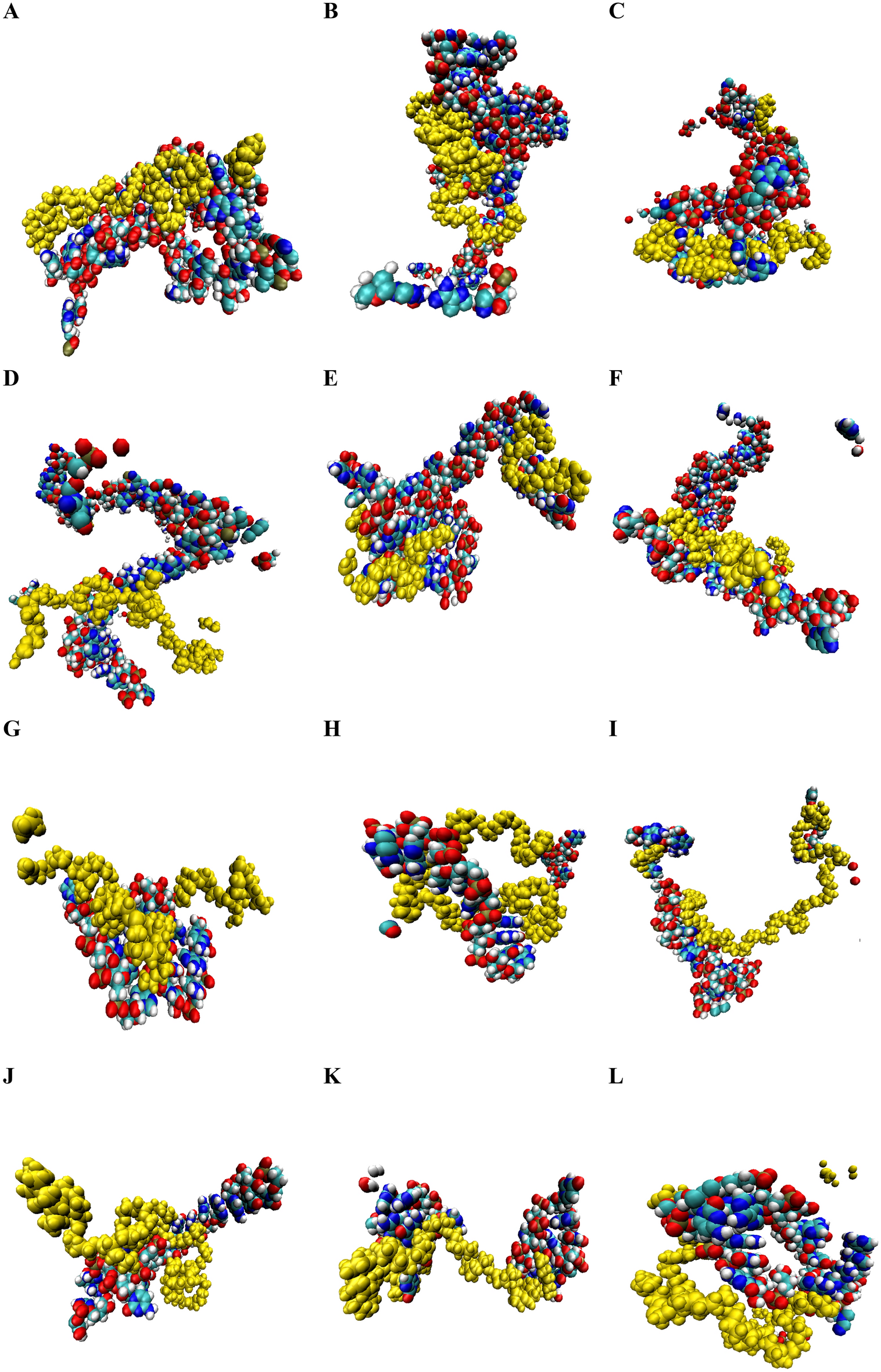

The snapshots of MD simulations among ant-miRNAs and siRNAs with PEG, PEI, and PEG-PEI. The output interaction of has-miR-146a-5p with (A) PEG, (B) PEI, and (C) PEG-PEI. The output interaction of has-miR-7155 with (D) PEG, (E) PEI, and (F) PEG-PEI. The output interaction of siRNA HIF1A with (G) PEG, (H) PEI, and (I) PEG-PEI. The output interaction of siRNA TNFSF11 with (J) PEG, (K) PEI, and (L) PEG-PEI. Yellow molecules represent the polymer.
