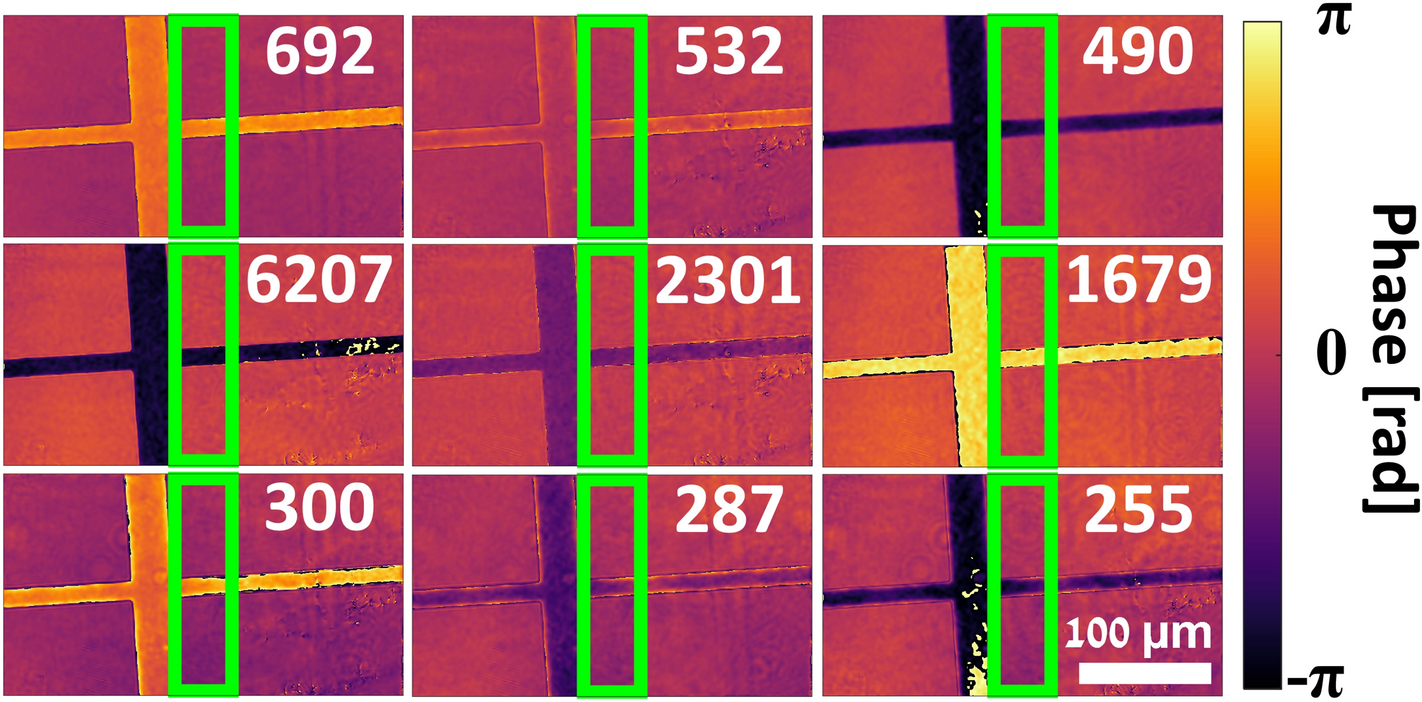

Figure 6
Wrapped phase maps of combined FOVs of microfluidic channel. Numbers in each image are the corresponding wavelength in nm. Top row: illumination wavelength phase maps, middle row: synthetic wavelength phase maps by subtraction, bottom row: synthetic wavelength phase maps by addition. Green rectangle indicates region of overlap between FOVs. Scale bar at bottom right applies to all phase maps.
