Figure 10
From: Transmission of drug-resistant bacteria in a hospital-community model stratified by patient risk

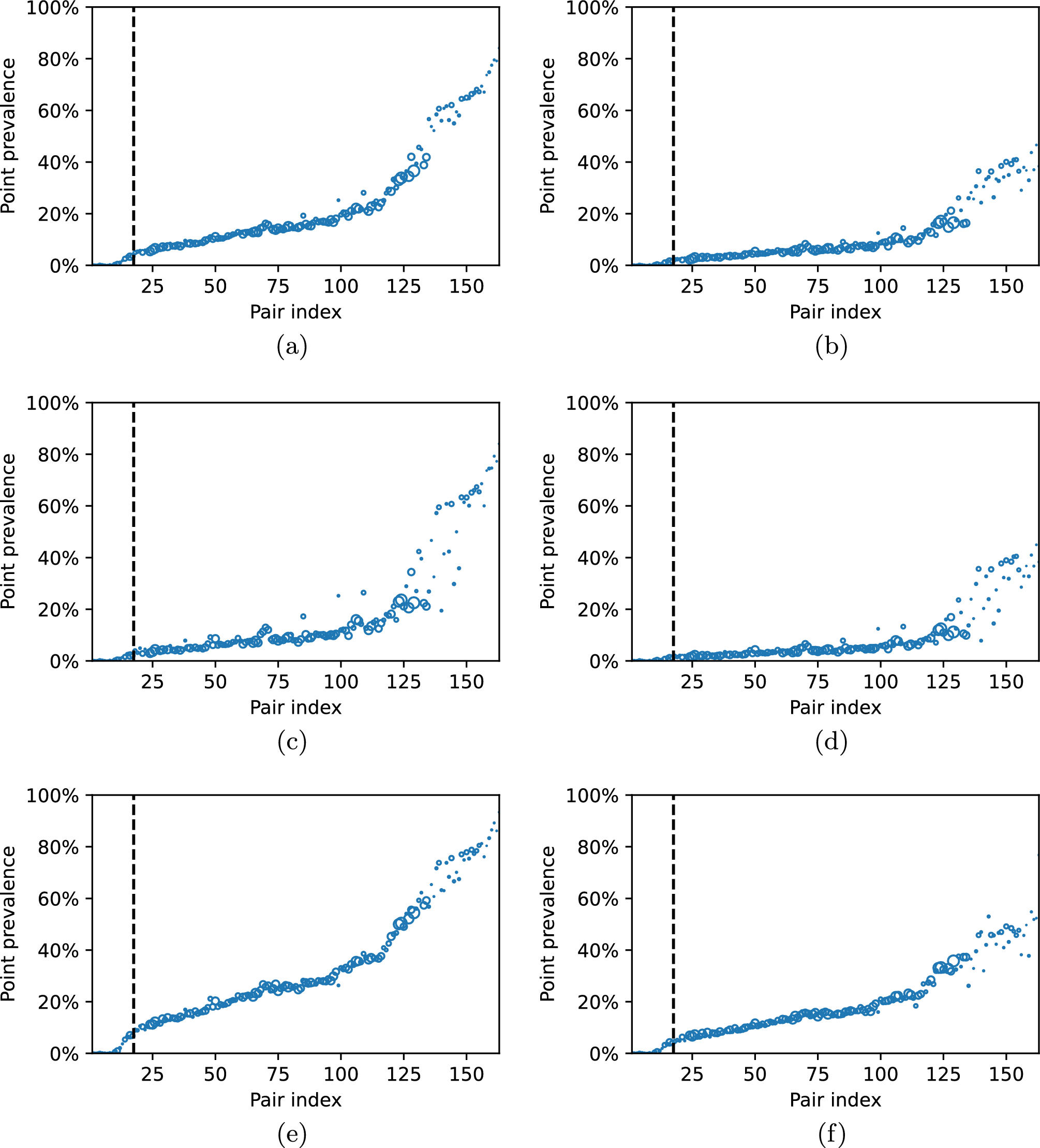

Point prevalence in the hospitals (left column) and communities (right column), for (a,b) both risk groups (expressed as a percentage of \(I_1^j + I_2^j\) among the whole hospital population and percentage of \(W_1^j + W_2^j\) among the whole community population, respectively); (c,d) low-risk group (expressed as the percentage of \(I_1^j\) among the hospital population from low-risk group and percentage of \(W_1^j\) among the community population from high-risk group); (e,f) high-risk group (expressed as the percentage of \(I_2^j\) among the hospital population from high-risk group and percentage of \(W_2^j\) among the community population from high-risk group), calculated at the end of the 3000 days long simulation for each of the separate hospital-community pairs (\(j = 1, \dots , 163\)), based on the solutions to system (1) with initial condition (41). Hospital-community pairs are sorted in ascending order based on \(\mathscr {R}_0^j\) value. Vertical dashed line indicates the first pair for which \(\mathscr {R}_0^j > 1.\) The size of markers is proportional to the average pair size \(PS_j\).
