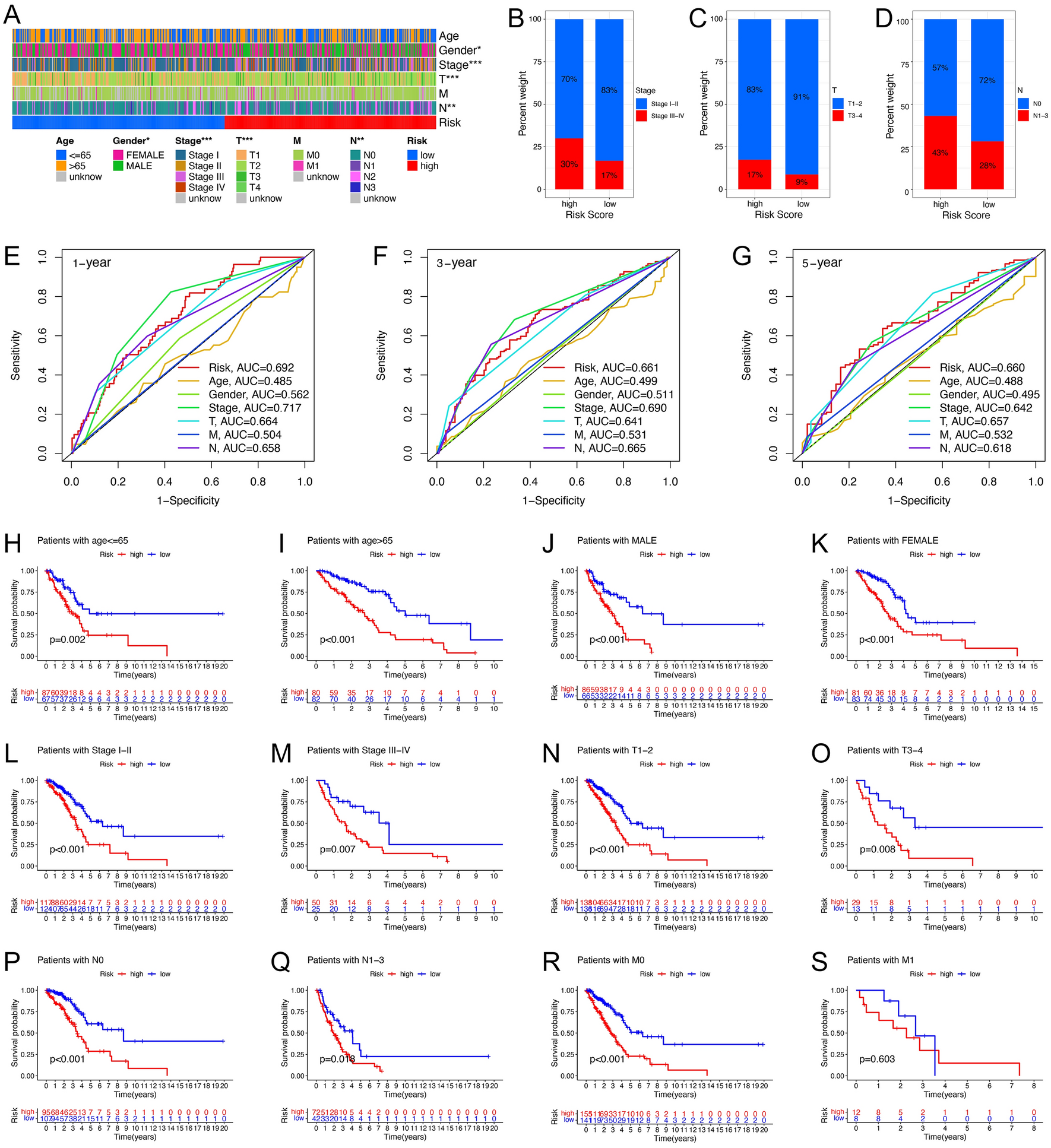

Figure 6
Correlations analysis between the risk signature and clinicopathological characteristics. (A) Heatmap demonstrated the differences in clinicopathological features between high- and low-risk groups in the TCGA cohort. (B–D) The bar plot showed the correlation between risk score and Stages (B), T (C), and N (D) of LUAD. (E–G) ROC curves for 1-year (E), 3-year (F), and 5-year (G) survival prediction, and clinicopathological characteristics. (H–S) Kaplan–Meier plots depicted subgroup survival analysis stratified by age (H,I), sex (J,K), tumor stage (L,M), T (N,O), M (P,Q), and N (R,S). *p-value < 0.05, **p-value < 0.01, ***p-value < 0.001.
