Figure 4

From: An interpretable machine learning approach to study the relationship beetwen retrognathia and skull anatomy

Figure 4

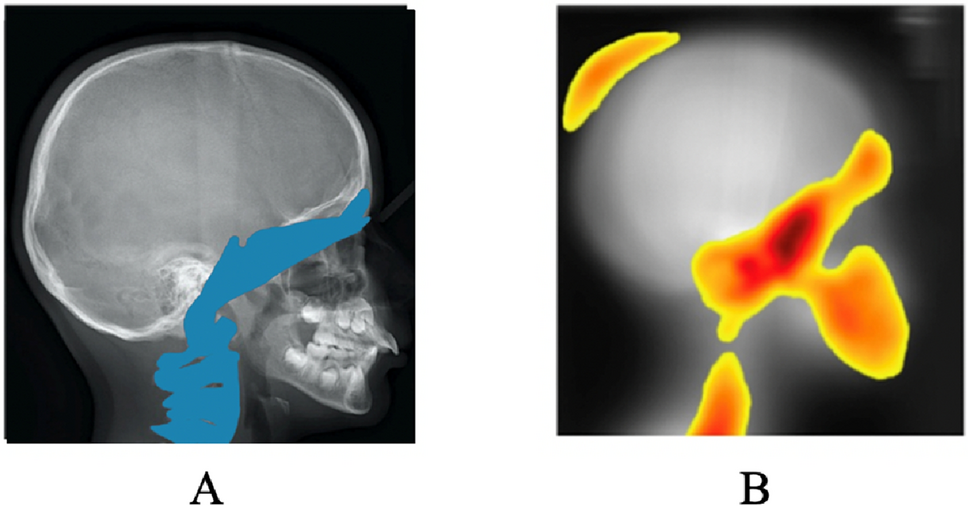

Craniofacial areas: (A) Anatomical structure identified in literature as being impacted by mandibular retrognathia: the frontal sinus, the base of the skull, the sphenoid and the cervical vertebrae; (B) Anatomical structure highlighted by our global activation map according to MIE-ICNN: the structures already identified in litterature, as well as the parietal bone.
